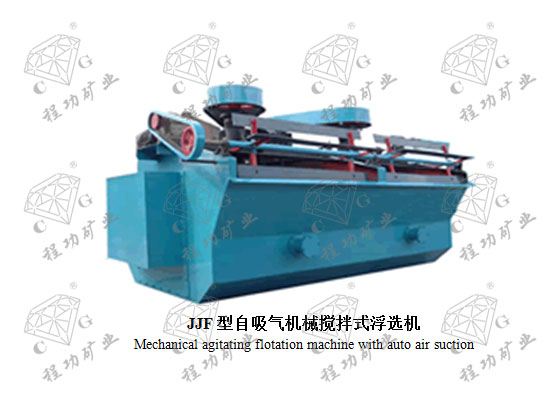

JJF型自吸气机械搅拌式浮选机
Mechanical
agitating flotation machine with auto air suction
国家行业标准JB/T9038
JJF型浮选机搅拌程度适中，固体颗粒悬浮良好，不沉槽，停车不用放矿；液面平稳，分选效率高；叶轮浸没深度浅，圆周速度低，功耗省；易损件寿命长，维修方便；没有假底和异流管理；具有自吸空气能力。
SF与JJF型浮选机机组。该机组利用SF型浮选机有自吸矿浆能力而作吸入槽，JJF型浮选机作直流槽，整个机组可水平配置，不用泡沫泵。
Model JJF has a moderate agitating strength, the solid particles being well suspended without settlement and no need for cleaning-up when stopped. The liquid surface is kept stable and it has higher flotation recovery. Due to the impeller has a shallow immerging depth and low periphery speed, it consumes less power and its wearable parst have longer service life featuring easy maintenance. Dummy bottom and honeycomb duct are furnisher. This machine has auto aeration ability.
Flotation set of models SF and JJF works in a manner that model SF is taken as the suction function cell utilizing its auto suction ability, while model JJF works as a direct flow cell. Whole set may be installed horizontal and needs no foam pump.
| 型号规格 Model | 容积 Volume | 槽体尺寸 cell size | 叶轮直径 Impeller Dia. | 叶轮转速 Impeller speed | 处理能力 capacity | 电机功率 power | 单槽质量 singe cell weight |
| m3 | mm | mm | r/min | m3/min | kw | kg | |
| JJF-1 | 1 | 1400×1400×650 | 280 | 443 | 0.3-1 | 5.5/1.1 | |
| JJF-2 | 2 | 1400×1400×1150 | 280 | 443 | 0.5-2 | 5.5/1.1 | |
| JJF-3 | 3 | 1500×1850×1200 | 350 | 360 | 1-3 | 11/1.5 | |
| JJF-4 | 4 | 1600×2150×1250 | 410 | 305 | 2-6 | 11/1.5 | 2302 |
| JJF-5 | 5 | 1600×2150×1550 | 410 | 305 | 2-6 | 11/1.5 | 2416 |
| JJF-8 | 8 | 2200×2900×1400 | 540 | 233 | 4-10 | 22/1.5 | 4500 |
| JJF-10 | 10 | 2200×2900×1700 | 540 | 233 | 4-12 | 22/1.5 | 4820 |
| JJF-16 | 16 | 2850×3800×1700 | 700 | 180 | 5-16 | 37/1.5 | 8000 |
| JJF-20 | 20 | 2850×3800×2000 | 700 | 180 | 2-20 | 37/1.5 | 8500 |
| JJF-24 | 24 | 3150×4150×2000 | Ф700 | 150 | 7-24 | 45 | 9180 |
| JJF-28 | 28 | 3150×4150×2300 | Ф800 | 140 | 7-28 | 55 | 9800 |
| JJF-42 | 42 | 3600×4800×2650 | Ф880 | 138 | 12-42 | 75 | 21000 |
| JJF-4Ⅱ | 4 | 1600×2150×1250 | Ф410 | 305 | 2-6 | 11/1.5 | 2302 |
| JJF-8Ⅱ | 8 | 2200×2900×1400 | Ф540 | 233 | 4-10 | 22/1.5 | 4500 |
| JJF-10Ⅱ | 10 | 2200×2900×1700 | Ф540 | 233 | 4-12 | 22/1.5 | 4820 |
| JJF-16Ⅱ | 16 | 2850×3800×1700 | Ф700 | 180 | 5-16 | 37/1.5 | 8000 |
| JJF-20Ⅱ | 20 | 2850×3800×2000 | Ф700 | 180 | 5-20 | 37/1.5 | 8500 |
| JJF-24Ⅱ | 24 | 3150×4150×2000 | Ф700 | 150 | 7-24 | 45 | 9180 |
| JJF-28Ⅱ | 28 | 3150×4150×2300 | Ф800 | 140 | 7-28 | 55 | 9800 |
| JJF-42Ⅱ | 42 | 3600×4800×2650 | Ф880 | 138 | 12-42 | 75 | 21000 |
