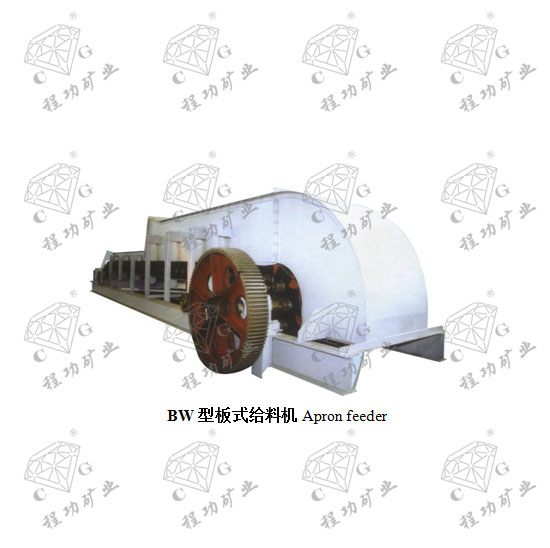

BW型板式给料机 Apron feeder

BW型链板式给料机（简称板喂机）是一种散状物料输送设备，把间歇式给料转变为连续性给料。本厂在引进国外先进技术上全心开发的BW型板喂机，具有牵引力大，漏料少、运行平稳，使寿命长用检修方便的优点。

BW type apron feeder is knd of machinery for continuously transporting bulky material．It is overall developed on the basis of importing advanced technology from overseas．It has advantages of large drawing strength，little material leakage，level operation，long service life and conventenance．

本机采用二点支撑（混合喂料增加中间支点），一端直接置于破碎机上，工艺布局简单，节约土建费用。

尾部装置采取特殊设计，适用于多雨潮湿地区，不会因粘湿物料聚积尾部而造成链条出现跳齿现象，影响生产。

尾部有枕木吸震，中部有一定数量特殊吸震拖辊支承，改善大块物料冲击两侧滚轮和槽板的受力条件，提高运行部件的寿命。

特别加强处理的头部罩壳下罩左右是不分开的，因而不妨碍起吊破碎机转子体。

牵引链和承载链分开，动载荷小，提高寿命。

头部装置链轮13~15齿，奇偶数齿分开传动，寿命可增加一倍。

头部装置链轮切割成3瓣齿，不需要拆卸链板，即可更换齿轮，易维护。

本机宽度参数参照F.L.SMIDTH（丹麦）和AUMUND（德国）公司标准设计。

This machine adopt two-point support (mixed feeding add a fulcrum)one end is put on the crusher directly,technology arrangement is simpler,saving construction expenditure.

Tail unit adopt special designing, apply to rainy and humid area, so avoiding chain jumping out resulting from sticky material accumulating on the tailing to disturb production.

Having crosstie on tali to absorb vibration,and some special absorptive absorptive bace-up roller on the middle,the impacting force to the sides rolling wheel and trough plate form large lump material are improved greatly to increase service life of running parts.

The lower housing of head housing, which is reinforced especially, may be divided into left part and right part, so, forlifting crusher rotor it has no obstruction.

The traction chain and the load chain is fixed separately, so,the moving load is small,to prolong service life.

The head fitted with sprocket of 13-15tooth, the odd number tooth and the even number tooth is driven separately, so, its service life may be doubled.

The head fittad with sprocket with three-split parrs,when replacing the wheel tooth,dismantling chain plate is ot needed,and maintenance is easier.

Width design parameter of this machine refers to F .L.SMIDTH(Denmark ) and AUMUND (Germany ) Company standard.

型号规格 Model	槽板宽度 Width ot chain plate	头尾轮轴中心距 Distance of heading tail shafts	速度 Speed	处理能力 Capacity	电机功率 Motor power	外型尺寸 Overall size	重量 Weight
型号规格 Model	mm	mm	mm	t/h	kw	mm	t
BW100-6	1000	6000	0.01~0.1	80~160	11	8620×4960 ×1600	15.7
BW100-12	1000	1200	0.05~0.1	60~130	15	13500×4215 ×1675	23.5
BW120-4	1200	4000	0.014~0.08	45~150	11	5810×5160 ×1480	12.7
BW120-6		6000	0.01~0.1	80~160	11	8620×5160 ×1600	15.7
BW120-11		11000	0.01~0.1	50~100	15	11463×5029 ×2860	23.6
BW120-19		19000	0.014~0.09	45~150	22	21620×5460 ×2000	41.1
BWZ120-4.5		4500	0.054	150	15	7183×3616 ×2071	30.5
BW125-6	1250	6000	0.014~0.08	45~150	11	8620×5240 ×1950	18.9
BW125-12	1250	12000	0.014~0.08	45~150	18.5	14620×5460 ×2000	31.9
BW140-8	1400	8000	0.017~0.17	100~200	22	10350×5948 ×1840	29.3
BW140-16		16000	0.006~0.06	20~200	22	18310×6447 ×2030	46
BW140-18.03		18030	0.006~0.06	20~200	22	20380×6440 ×2030	51
BW150-5	1500	5000	0.014~0.08	85~288	15	7620×5440 ×1950	18.7
BW150-10.5		10500	0.006~0.06	20~200	22	12850×5595 ×1705	49.4
BW150-15		15000	0.006~0.06	20~200	22	17350×5595 ×1705	58.8
BW160-6	1600	6000	0.017~0.17	61~610	22	8354×6099 ×2100	25
BW160-9	1600	9000	0.076	180	22	11250×5716 ×2240	34.8
BZ160-9	1600	9000	0.01~0.07	27~270	30	11250×4153 ×2890	50
BZ180-8	1600	8000	0.01 ~0.07	≤500	37	10250×4353 ×2890	59
BZ180-8.75	1800	8750	0.01~0.07	≤500	37	11050×4353 ×2890	61
BZ180-9	1800	9000	0.01~0.07	≤500	37	11250×4353 ×2890	63
BZ180-9.8	1800	9800	0.01~0.07	≤500	37	12000×4353 ×2890	63
BZ180-10	1800	10000	0.01~0.07	≤500	37	12200×4353 ×2890	66
BZ200-9.8	2000	9800	0.01~0.07	≤700	45	12000×4553 ×2890	82
BZ220-10	2200	10000	0.01~0.07	≤800	45	12000×4753 ×2890	85
BZ230-10	2300	10000	0.01~0.07	≤850	55	12000×4853 ×2890	86
BZ240-10	2400	10000	0.02~0.06	550~900	2×37	12000×4953 ×2890	95
BZ250-11.46	2500	11460	0.01~0.07	100~1000	2×45	12000×5053 ×2890	105
BW180-8	1800	8000	0.022~0.046	30~320	37	10300×4295 ×3650	53
BWZ180-12	1800	12000	0.05	360	45	14723×6697 ×2080	67.8
BW220-10	2200	10000	0.018~0.055	220~680	45	12650×4495 ×3350	80.4
BW240-10	2400	10000	0.018~0.055	2200~680	45	12650×4695 ×3350	83.4
