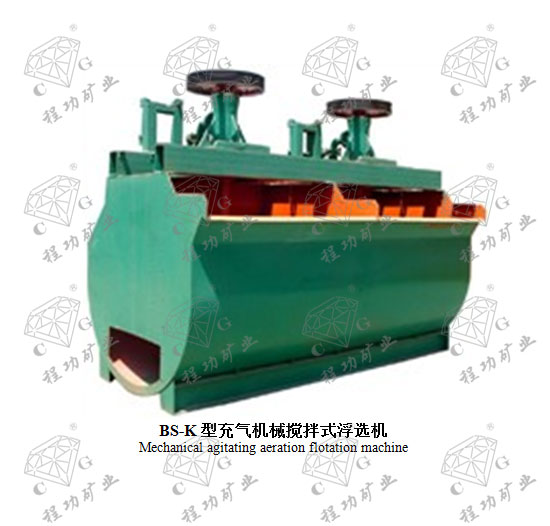

BS-K型充气机械搅拌式浮选机
Mechanical
agitating aeration flotation machine
国家行业标准JB/T9038
BS-K型浮选机属深槽型、充气型浮选机，叶轮只起搅拌矿浆、循环矿浆和分散空气的作用，因而易损件磨损较轻，其功率比其它类型浮选机较省。该机无自吸矿浆能力，需要阶梯配置，作业中间产品返回需用泡沫泵。
Model-BS-K is a kind of deep tank lotation machine with aeration. Again, the impeller plays roles of agitating shurry, cycling slurry and distributing air. Therefore, the wearable parts suffer less waaring. It requires less power than the other models. This machine has no ability to pump slurry, thus bench arrangement is necessary, and foam pump is needed.
| 型号规格 Model | 容积 Volume | 槽体尺寸 cell size | 叶轮直径 Impeller Dia. | 叶轮转速 Impeller speed | 处理能力 capacity | 电机功率 power | 单槽质量 singe cell weight |
| m3 | mm | mm | r/min | m3/min | kw | kg | |
| BS-K1 | 1 | 1000×1000×1100 | 350 | 281 | 0.2-1 | 3/1.1 | 998 |
| BS-K2 | 2 | 1500×1500×1300 | 420 | 260 | 0.5-3 | 5.5/1.1 | 1480 |
| BS-K3 | 3 | 1600×1600×1400 | 500 | 230 | 0.5-3 | 7.5/1.1 | 2001 |
| BS-K4 | 4 | 1850×1850×1550 | 500 | 225 | 0.5-4 | 7.5/1.1 | 2200 |
| BS-K6 | 6 | 2100×2100×1680 | 650 | 197 | 1--6 | 18.5/1.1 | 3278 |
| BS-K8 | 8 | 2250×2250×1700 | 650 | 190 | 1--8 | 15/1.1 | 4832 |
| BS-K16 | 16 | 2950×2720×2380 | 750 | 165 | 2--16 | 30/1.1 | 8131 |
| BS-K24 | 24 | 3200×3200×2800 | 830 | 159 | 7--24 | 37/1.1 | 9820 |
| BS-K30 | 30 | 3500×3500×3025 | 880 | 151 | 7---30 | 37/1.1 | 11100 |
| BS-K38 | 38 | 3600×3600×3400 | 910 | 141 | 10-38 | 45/1.1 | 13820 |
