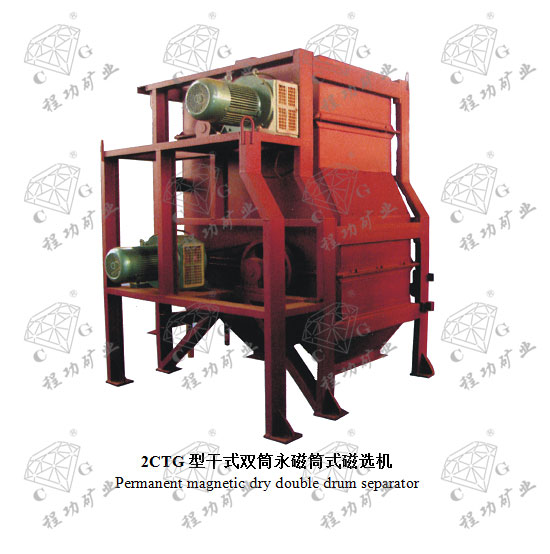

2CTG型干式双筒永磁筒式磁选机 Magnetic dry double drum separator
主要用于细颗料强磁性矿物的干式分选，也适用于从粉状物料中剔除磁性杂质或磁性物料的提纯。在治金、化工、水泥、陶瓷、砂轮、粮食等行业，以及烟灰、炉渣的物料处理方面得到日益广泛的应用。
This kind of equipment is mainly used for dry separation of fine-particle strongly-magnetic minerals. It is also used to get rid of magnetic impurities from powdery materials or purify magnetic materials. Such separators are more and more widely used in industries such as metallurgy, chemicals, cement, ceramics, grinding wheels and grains and more and more used to deal with materials such as soot and furnace clinker.
| 型号规格 Model | 2CTG-69/5 | 2CTG-69/3/5 | 2CTG69/5/9 | ||
| Φ600×900 | |||||
| 圆筒 Drum | 直径 Dia. | mm | 600 | ||
| 长度Tube | mm | 900 | |||
| 转速Speed | r/min | 150～300 | 150～300 | 150～300,75～150 | |
| 极距 | mm | 50/50 | 30/50 | 50/90 | |
| 磁感强度 Magnetic induction density | mT | 115/115 | 105/115 | 115/125 | |
| 选箱形式 | 两个排矿口(精,尾) | ||||
| 分选粒度 Partide sorting | mm | 1.5～0 | 0.5～0 | 1.5～0 | |
| 入选湿度 | % | ≤2 | ≤1 | ≤2 | |
| 处理能力 Capacity | t/h | 5～10 | 3～5 | 5～10 | |
| 功率 Power | kw | 1.5;2.2×2 | 1.5;2.2×2 | 1.5;2.2×2 | |
| 外形尺寸 Overrall dimensions | mm | 2000×1650×2880 | |||
| 质 量 Weight | t | 4.1 | 4.1 | 4.2 | |
我们要求服务人员时刻关注客户，及时解决设备问题，确保顾客的利益比一切都重要。
