·3NZ、3TNZ型三层浓密机 Triple-deck scrubbing thickene

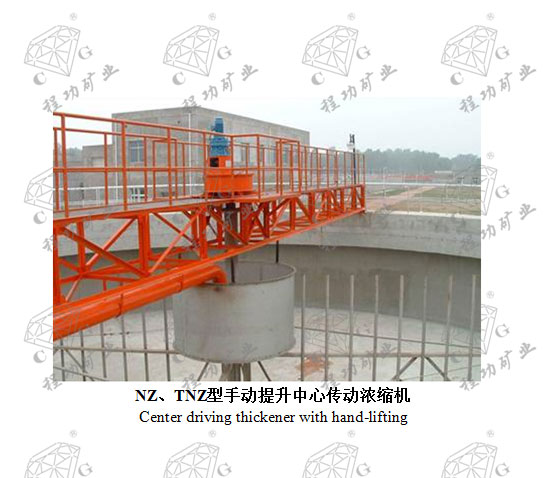

NZ、TNZ型多层浓密机 Multi-deck scrubbing thickener

型号规格 Model	层数 Deck	浓密池尺寸 D of the tank	耙架转速 Speed	处理能力 Capa.	提耙高度 Lifting height	给矿粒度 Feed size	功率Power	质量 Weight
型号规格 Model	层数 Deck	m	r/min	r/d	mm	200目	kw	t
2NZ、2TNZ型二层浓密机 Double-deck scrubbing thickener
2NZS6	2	Φ6×5.34	0.25	≤50	200	占80~98%	2.2	13.4
2NZS7	2	Φ7×4.75	0.25	≤60	200	占80~98%	2.2	14.2
2NZS8	2	Φ8×6.08	0.28	≤68	200	占80~98%	4.0	16.8
2NZS9	2	Φ9×5.91	0.28	≤90	200	占80~98%	4.0	21.9
2NZS12	2	Φ12×6.87	0.2	≤160	250	占80~98%	5.5	40.4
2NZS15	2	Φ15×6.95	0.15	≤250	25	占80~98%	5.5	51.5
2TNZ6	2	Φ6×5.1	0.297	≤60	200	占80~98%	1.1	13.4
2TNZ7	2	Φ7×4.75	0.307	≤85	200	占80~98%	1.5	14.2
2TNZ9	2	Φ9×4.7	0.28	≤140	200	占80~98%	3	21.9
2TNZ12	2	Φ12×5.4	0.205	≤250	250	占80~98%	3	40.4
2TNZ15	2	Φ15×5.45	0.168	≤390	250	占80~98%	3	51.5
3NZ、3TNZ型三层浓密机 Triple-deck scrubbing thickener
3NZS5	3	Φ5×6.8	0.375	≤27	200	占80~98%	2.2	9.67
3NZS6	3	Φ6×7.44	0.25	≤50	200	占80~98%	2.2	13.4
3NZS7	3	Φ7×7.51	0.25	≤56	200	占80~98%	2.2	16.1
3NZS7.5	3	Φ7.5×6.8	0.285	≤60	200	占80~98%	2.2	17.5
3NZS8	3	Φ8×8.58	0.28	≤70	200	占80~98%	4	18.5
3NZS9	3	Φ9×8.26	0.28	≤88	200	占80~98%	4	21.9
3NZS11	3	Φ11×6.9	0.2	≤150	250	占80~98%	5.5	44.8
3NZS12	3	Φ12×9.17	0.2	≤160	250	占80~98%	5.5	45.4
3NZS15	3	Φ15×9.3	0.15	≤250	250	占80~98%	5.5	56.5
3TNZ4	3	Φ4×7.2	0.307	≤27	200	占80~98%	1.5	8.9
3TNZ6	3	Φ6×7.2	0.307	≤62	200	占80~98%	1.5	13.4
3TNZ7	3	Φ7×7.2	0.33	≤85	200	占80~98%	2.2	16.1
3TNZ9	3	Φ9×6.8	0.28	≤140	200	占80~98%	3	21.9
3TNZ12	3	Φ12×7.7	0.205	≤250	250	占80~98%	3	45.4
3TNZ15	3	Φ15×7.77	0.15	≤390	250	占80~98%	5.5	56.5
