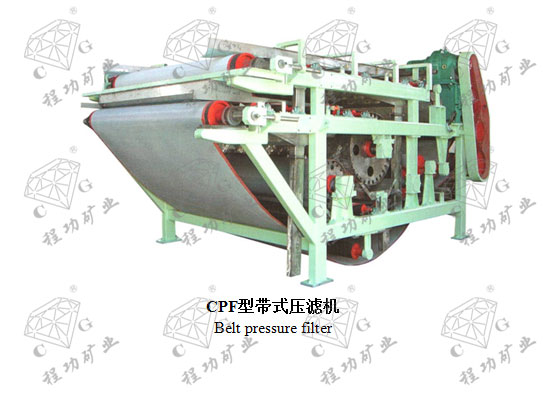

CPF型带式压滤机Belt pressure filter
国家行业标准JB/T9040
CPF型引进奥地利Andritz公司技术，广泛应用于精煤、尾煤、冶金污泥、选矿脱水，市政污泥，造纸，制革，化工等工业的固液分离新型设备。处理干固量；每小时每m带宽—消化污泥0.5t/h，水泥厂料浆15t/h、市政污泥0.4t/h，尾煤回收8t/h、制革厂废料0.25t/h、水泥厂料浆15t/h，原油回收率95%以上、冶金污泥浆3.5t/h（按CPF2000为例）。
CPF belt pressure filters employ the technology of Andritz in Austria . They are widely used for new solid-liquid separation equipment in industries such as clean coal, tailings, metallurgy sludge, beneficiation and dewatering, civil sludge, paper making, leather making, and chemicals. Handled dry solid content: Per hour per m band width - digested sludge: 0.5t/h, slurry of cement plant: 15t/h, municipal sludge: 0.4t/h, recycled tailings: 8t/h, waste material of tannery: 0.25t/h, slurry of cement plant: 15t/h, oil recovery rate: over 95%, metallurgy sludge slurry: 3.5t/h (take CPF2000 as an example).
| 型号规格Model | 带宽Belt width | 带速Belt speed | 给料浓度 Feed concentra-tion | 滤饼水份 Cake moislure | 生产能力Capa. | 功率Power | 质量 Weight |
| mm | m/min | (%) | (%) | t/h | kw | t | |
| CPF2000S5 | 2000 | 1.3-8.2 | 1-6 | 58-87 | 1/3.5 | 5.5 | 13.5 |
| CPF2000S4P | 2000 | 0-9.32 | 2.5-5 | 68-75 | 1.3/3 | 7.5 | 13.97 |
| CPF2000S3P | 2000 | 0-9.32 | 1.5-3.5 | 75-82 | 0.8/8 | 7.5 | 13.8 |
| CPF2000S3P3 | 2000 | 0-9.32 | 2-6 | 60-70 | 1.8/15 | 7.5 | 15.6 |
| CPF2000P3 | 2000 | 0-9.32 | 3-7 | 50-70 | 2-20 | 7.5 | 15.5 |
| CPF3500S7 | 3500 | 1-8 | 1-6 | 60-86 | 28-35 | 2.2 | 45 |
| CPF3500S1 | 3500 | 1-8 | 1-6 | 60-86 | 35 | 2.2 | 45 |
| CPF2500S1 | 2500 | 1-9 | 3-7 | 30-60 | 25 | 5.5 | 8.5 |
| CPF3000S6 | 3000 | 1-8 | 1-6 | 60-86 | 30 | 5.5 | 12.7 |
| CPF3500 | 3500 | 1-8 | 3-7 | 60-86 | 25 | 2.2 | 45 |
| CPF2500 | 2500 | 1-9 | 3-7 | 50-70 | 25 | 5.5 | 8.5 |
| CPF2000S7 | 2000 | 0-9.32 | 3-7 | 58-87 | 13 | 5.5 | 12.57 |
| CPF3000S7 | 3000 | 1-8 | 1-6 | 60-86 | 25 | 5.5 | 12.7 |
| CPF2000D | 2000 | 0-9.32 | 3-7 | 58-87 | 15 | 5.5 | 9.2 |
我们要求服务人员时刻关注客户，及时解决设备问题，确保顾客的利益比一切都重要。
