PBF型水平真空带式过滤机 Horizontal Vacuum Belt Filter
PBF水平真空带式过滤机是一种自动化程度高的新型过滤设备，该机以过滤布或滤网为介质，使料浆水平布置于过滤介质之上，充分利用料浆重力和真空吸力实现固液分离。连续水平真空带式过滤机可适用于多种浓度条件下的物料，过滤效率高，因而被诸多工业部门优先采用。
PBF horizontal vacuum belt filters are a kind of highly automatic new filtering equipment. Such equipment takes filter cloth or filter screen as the medium to get the slurry to be horizontally placed on the filtration medium. It fully utilizes the gravity of slurry and pull of vacuum to realize solid-liquid separation. Horizontal vacuum belt filters apply to materials of various concentrations. Its filtration efficiency is high. Thus, they are used by many industrial sectors.
特点:
Characteristics:
喂料、过滤、洗涤、脱渣、滤布再生可连续自动完成，自动化程度高。
Feeding, filtering, washing, deslugging, and filter cloth recycling can be finished continuously and automatically. It is highly automatic.
可对物料进行多级平流或逆流洗涤，过滤液（母液）和洗涤液可分开集液。
Multistage smooth current or countercurrent washing can be done to materials. The filtrate (mother liquid) and washing liquid can be received separately.
对过滤性差，粘度高的物料，可实现薄层快速过滤。
Thin-layer and rapid filtration can be realized for materials with poor filterability and high viscosity.
模块式设计，可灵活组合，适应性强。
It is of modular design, can be flexibly configured, and has strong adaptability.
采用PLC控制，便于远程及集中控制。
It adopts PLC control, easy for remote and centralized control.
采用蛇形纠偏，解决了滤布的跑偏及打折。
It rectifies deviation in a snake shape and avoids deflection and folding of filter cloth.

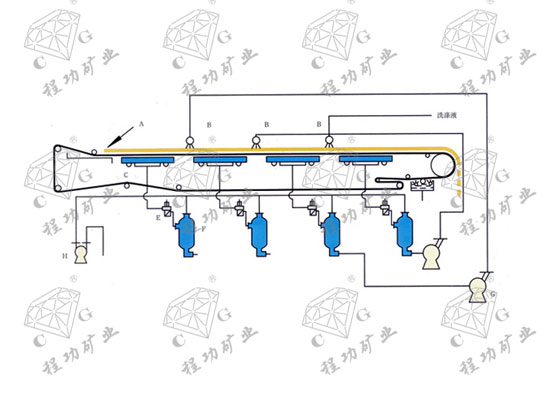

典型工艺图: Typical Flow Chart:
A、加料装置 H、真空泵 G、返水泵 F、排液分离器 E、切换阀 D、洗布装置 C、纠偏装置 B、洗涤装置
A. Feeding device H. Vacuum pump G. Return water pump F. Drain separator E. Switch valve D. Cloth washing device C. Corrective device B. Washing device
应用实例表: Application Scope:
| 物料名称 | 液固比 | 滤饼含水率% | 生产效率Kg/m3/h | 物料名称 | 液固比 | 滤饼含水率% | 生产效率Kg/m3/h |
| 柠檬酸 | 5/1-3/1 | 15 | 25.8 | 烧碱和CUS混合液 | 4/1 | 19.6 | 416 |
| 氧化锌 | 10/1 | 51.2 | 75.9 | ABS树脂 | 10/1 | 36-38 | 170-232 |
| 氧化锰还原酸浸矿浆 | 3.1 | 45.06 | 88.46 | 磷酸钙矿浆 | 3.5/1 | 21.5 | 345 |
| 磁铁矿 | 2.5/1-4/1 | 7.6 | 500-1000 | 溶性磷肥 | 2/1-5/1 | 7-10 | 1000-2000 |
| 硫精矿 | 4/1-2.5/1 | 11.63 | 360-800 | 硫酸污泥 | 1.5/1 | 37-40 | 665-780 |
| 铜精矿 | 4/1-2.5/1 | 12 | 400-600 | 铝钒土 | 5/1-4/1 | 26.4-29 | 1700 |
| 全尾矿 | 9/1-4/1 | 21.4 | 300-500 | 苛化泥 | 4/1 | 47-51 | 266-613 |
| 精铁矿 | 2/1-1.5/1 | 8-10 | 2000-3000 | 硫酸铝残硅 | 1.5/1 | 37 | 200 |
| 锰矿 | 2/1 | 15-17 | 800-1000 | 庆大霉素发酵液 | 1/1-2/1 | 33.1 | 78.5 |
| 氢氧化铝 | 4/1 | 15-17 | 350 | 粗氧化锌 | 4/1 | 23.5 | 233 |
| 莹石粉 | 2/1 | 11 | 800 | 含氟石灰 | 4/1-5/1 | 42-51 | 200-560 |
| 苛化泥 | 4/1 | 47-51 | 266-613 | 盐铵 | 4/1 | 18-20 | 1000-1500 |
| 五氧化二钒 | 3/1 | 33 | 174 | 硅氟化钠 | 3/1 | 15-20 | 300-500 |
| 煤烟灰 | 10/1 | 20.7 | 4.9m3/m3/h | 湿法水泥 | 2/1 | 16-20 | 787 |
| 金精矿 | 2/1 | 25-27 | 111 | 选煤精煤 | 4/1 | 22.4 | 218 |
| 童钨酸铵 | 2/1 | 71 | 200 | 选煤尾煤 | 6/1 | 25 | 100 |
| 偶氮在机染料 | 30/1-20/1 | 69 | 100 | 硫酸锌矿浆 | 5/1 | 45-50 | 312 |
| 4A沸石 | 80-100 g/L | ≤43 | 164 | 种分玛瑙种子 | 200-400 g/L | ≤20 | 684 |
| 种分玛瑙成品 | 260-600 g/L | ≤15 | 125 | 硅渣 | 4.5 | ≤35 | 342 |
| 拜尔法氢氧化铝种子 | 400-800g/L | ≤15 | 2000 | 脱硫石膏 | 1/1 | ＜10 | 800-1000 |
| 拟薄水铝石 | 8/1 | 60 | 30-50 |
技术参数:
| 过滤宽度 | 0.625-2.0(m) | 2.5-3.0(m) | 0.625m | 1.25 | 1.6 | 2.0 | 2.5 | 3.0 | ||||||||
| 过滤长度 | N | L | N | L | 过滤面积 | 重量 | 过滤面积 | 重量 | 过滤面积 | 重量 | 过滤面积 | 重量 | 过滤面积 | 重量 | 过滤面积 | 重量 |
| 3000 | 0 | 6125 | 1 | 6150 | 1.9 | 2400 | 3.8 | 2850 | 4.8 | 3100 | 6.0 | 3400 | 7.5 | 3800 | 9.0 | 4200 |
| 4500 | 1 | 7625 | 2 | 7650 | 2.8 | 2600 | 5.6 | 3100 | 7.2 | 3400 | 9.0 | 3750 | 11.3 | 4200 | 13.5 | 4650 |
| 6000 | 2 | 9125 | 3 | 9150 | 3.8 | 2800 | 7.5 | 3350 | 9.6 | 3700 | 12.0 | 4100 | 15.0 | 4600 | 18.0 | 5100 |
| 7500 | 3 | 10625 | 4 | 10650 | 4.7 | 3000 | 9.4 | 3600 | 12.0 | 4000 | 15.0 | 4450 | 18.8 | 5000 | 22.5 | 5550 |
| 9000 | 4 | 12125 | 5 | 12150 | 5.6 | 3200 | 11.3 | 3825 | 14.4 | 4300 | 18.0 | 4800 | 22.5 | 5400 | 27.0 | 6000 |
| 10500 | 5 | 13625 | 6 | 13650 | 6.6 | 3400 | 13.1 | 4100 | 16.8 | 4600 | 21.0 | 5150 | 26.3 | 5800 | 31.5 | 6450 |
| 12000 | 6 | 15125 | 7 | 15150 | 7.5 | 3600 | 15.0 | 4350 | 19.2 | 4900 | 24.0 | 5500 | 30.0 | 6200 | 36.0 | 6900 |
| 13500 | 7 | 16625 | 8 | 16650 | 8.4 | 3800 | 16.9 | 4600 | 21.6 | 5200 | 27.0 | 5850 | 33.8 | 6600 | 40.5 | 7350 |
| A | 600 | 600 | 600 | 600 | 500 | 500 | ||||||||||
| B | 2400 | 2400 | 2400 | 2400 | 2000 | 2000 | ||||||||||
| C | 3000 | 3000 | 3000 | 3000 | 2000 | 2000 | ||||||||||
| D | 1550 | 1550 | 1650 | 1650 | 1700 | 1700 | ||||||||||
| E | 1100 | 1800 | 2200 | 2600 | 3150 | 3650 | ||||||||||
| F | 2100 | 2800 | 3200 | 4200 | 4150 | 4650 | ||||||||||
| G | 973.5 | 973.5 | 973.5 | 973.5 | 1028.5 | 1028.5 | ||||||||||
| H | 1348.5 | 1348.5 | 1348.5 | 1348.5 | 1403.5 | 1403.5 | ||||||||||
| I | 585 | 585 | 585 | 585 | 612 | 612 | ||||||||||
| J | 1104 | 1104 | 1104 | 1104 | 1163 | 1163 | ||||||||||
| K | 2030 | 2736 | 3136 | 3536 | 4146 | 4646 | ||||||||||
| M | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | ||||||||||
| R | 1250 | 1250 | 1250 | 1250 | 1350 | 1350 | ||||||||||
| S | 1400 | 2100 | 2500 | 2900 | 3450 | 3950 | ||||||||||
| T | 1670 | 1670 | 1770 | 1770 | 1870 | 1870 | ||||||||||
应用范围:
| 化学 品 | 活性炭 | 催化剂 | 矿 物 | 氢氧化铝 | 钾盐 | 食 品 | 醋酸 | 肥料 | 碳酸钙 |
| 氟化铝 | 染料及其中间体 | 煤的泥浆 | 支链淀粉衍生物 | 硫酸钙 | |||||
| 氧化铝凝胶 | 工业洗涤剂 | 铜的浓缩物 | 柠檬酸钙 | 硝酸钙 | |||||
| 氢氧化铝 | 氧化铁 | 黄金的沉淀物 | 草酸钙 | 硝酸法的泥浆 | |||||
| 磷酸铝 | 氧化铝 | 碳酸锰 | 硫酸钙 | 环境保护 | 工业废水 | ||||
| 硫酸铝 | 锌钒白 | 氢氧化镁 | 谷氨酸 | 城市污水 | |||||
| 氨基酸 | 碳酸镁 | 碳酸锰 | 蔗糖 | 除尘污泥等 | |||||
| 钡盐 | 氢氧化镁 | 矿石沥滤残渣 | 柠檬酸 | ||||||
| 硼酸盐 | 镍盐 | 磷酸盐 | 乳酸 | ||||||
| 硼酸 | 过氧化物 | 红泥 | 麦芽糖 | ||||||
| 溴盐 | 磷酸 | 金红石 | 蛋白质 | ||||||
| 锌盐 | 涂料 | 银的回收物 | 植物油 | ||||||
| 增塑剂 | 钛矿的分解物 |
Application Scope:
| Chemicals | Activated carbon | Catalyzer | Mineral | Aluminum hydroxide | Hoevellite | Food | Acetic acid | Fertilizer | Calcium carbonate |
| Aluminum fluoride | Dye and midbody | Slurry of coal | Decomposed of starch | calcium sulfate | |||||
| Alumina gel | Industrial detergent | Copper concentrates | Calcium citrate | Calcium nitrate | |||||
| Aluminum hydroxide | Iron oxide | Golden deposit | Calcium oxalate | Slurry of nitric process | |||||
| Aluminum phosphate | Aluminum oxide | Manganese carbonate | Calcium sulfate | Environment protection | Industrial sewage | ||||
| Aluminum sulfate | Zinc sulfide white | Magnesium hydroxide | Glutamic acid | Municipal sewage | |||||
| Amino acid | Magnesium carbonate | Manganese carbonate | Saccharose | Dust removing sludge, etc | |||||
| Barium salt | Magnesium hydroxide | Filtered ore remainder | Citric acid | ||||||
| Borate | Nickel salt | Phosphate | Lactic acid | ||||||
| Boric acid | Superoxide | Red mud | Maltose | ||||||
| Bromic salt | Phosphoric acid | Rutile | Protein | ||||||
| Zinc salt | Coating | Recovered matter of silver | Plant oil | ||||||
| Plasticizer | Decomposed product of titanium ore |
