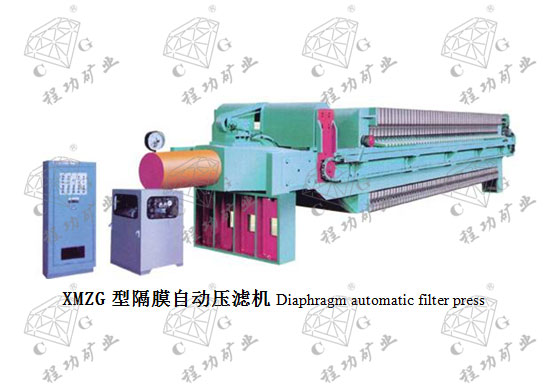

XMZG型隔膜自动压滤机 Diaphragm automatic filter press
XMZG型压滤机是一种新型的固液分离设备，主要用于代替真空过滤机处理0.5以下细粒级浮选精煤过滤脱水，具有占地少、产率高、能耗低等特点，也适用于化工、建材、环保污染等领域的固液分离。
XMZG filter press is a kind of new solid-liquid separation equipment which are mainly used to replace vacuum filters to handle filtering dehydration of flotation concentrate with fine particles of below 0.5. It has characteristics such as small occupying area, high productivity, and low energy consumption. Such filter presses can also be used for solid-liquid separation in fields such as chemicals, building materials, and environment protection.
| 型号规格 Model | 过滤面积 | 滤板尺寸 | 滤室容积 | 滤板 数量 | 入料压力 | 压榨压力 | 滤室 宽度 | 功率 Power | 机重Weight |
| m2 | mm | m3 | (块) | MPa | MPa | mm | kw | t | |
| XMZG60/1070 | 60 | 1070×1070×60 | 1.05 | 30 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 8.5 |
| XMZG80/1070 | 80 | 1070×1070×60 | 1.4 | 40 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 10.1 |
| XMZG100/1070 | 100 | 1070×1070×60 | 1.75 | 50 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 11.6 |
| XMZG120/1070 | 120 | 1070×1070×60 | 2.1 | 60 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 13.5 |
| XMZG150/1070 | 150 | 1070×1070×60 | 2.63 | 75 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 19 |
| XMZG120/1250 | 120 | 1070×1070×65 | 2.1 | 45 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 16.3 |
| XMZG150/1250 | 150 | 1070×1070×65 | 2.57 | 56 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 22 |
| XMZG200/1250 | 200 | 1070×1070×65 | 3.53 | 75 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 25.3 |
| XMZG250/1250 | 250 | 1070×1070×65 | 4.3 | 95 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 25.6 |
| XMZG200/1250 | 200 | 1070×1070×70 | 3.5 | 51 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 27.5 |
| XMZG300/1250 | 300 | 1070×1070×70 | 5.2 | 76 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 28.5 |
| XMZG400/1250 | 400 | 1070×1070×70 | 6.9 | 102 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 32.7 |
| XMZG500/1250 | 500 | 1070×1070×70 | 8.78 | 128 | 0.6-0.8 | 0.6-0.8 | 35 | 5.5 | 36.5 |
