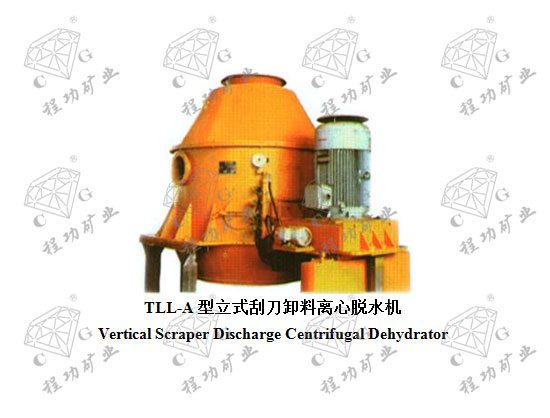

TLL-A型立式刮刀卸料离心脱水机
Vertical
Scraper Discharge Centrifugal Dehydrator
用途：该系列离心脱水机适用于选煤厂0-13mm级末中煤的脱水，其处理能力为50-200t/h。
Application: Centrifugal dehydrators of such series apply to the dewatering of middling and tailing with particle size of 0-13mm in coal preparation plants. Their handing capacity is 50-200t/h.
技术特点：TLL—A系列立式刮刀卸料离心脱水机是TLL系列离心脱水机的改进型，它与原机型相比具有检修方便、润滑合理、运转平稳可靠等优点。
Technical Characteristics: TLL-A vertical scraper discharge centrifugal dehydrator is the improved TLL centrifugal dehydrator. Compared with the prototype, it enjoys advantages such as easy maintenance, reasonable lubrication, as well as smooth and reliable operation.
| 型号规格 | TLL-700A | TLL-900A | TLL-1000A | TLL-1150A | |
| 入料粒度 | ` | 13-0 | 25-0 | 25-0 | 25-0 |
| 入料水分 | % | <30 | <30 | <30 | <30 |
| 处理能力 | t/h-1 | 50 | 100 | 15 | 200 |
| 产品外在水份 | % | 5-8 | 5-8 | 5-8 | 5-8 |
| 筛网缝隙 | mm | 0.5 | 0.5 | 0.5 | 0.5 |
| 主电机功率 | kw | 18.5 | 45 | 55 | 75 |
| 润滑电机功率 | kw | 0.75 | 0.75 | 1.1 | 1.1 |
| 外形尺寸 | Mm | 2175×1690×1955 | 2755×2030×2320 | 3010×2250×2515 | 3270×2460×2705 |
| 质量 | kg | 3125 | 5240 | 6465 | 7770 |
我们要求服务人员时刻关注客户，及时解决设备问题，确保顾客的利益比一切都重要。
