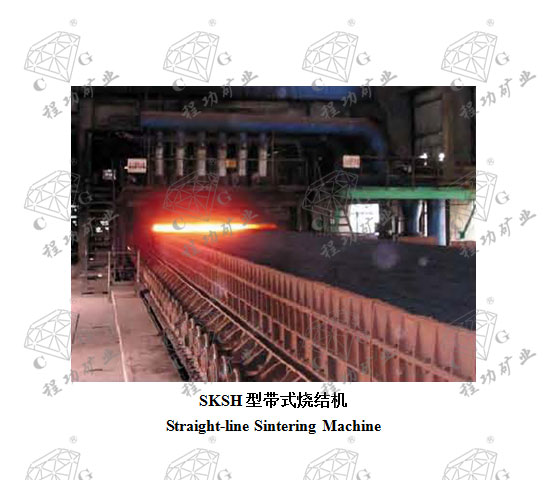

SKSH型带式烧结机 Straight-line Sintering Machine
烧结机适用于大型黑色冶金烧结厂的烧结作业，它是抽风烧结过程中的主体设备，可将不同成份、不同粒度的精矿粉、富矿粉烧结成块，并部分消除矿石中所含的硫、磷、砷等有害杂质。
Sintering machines apply to the sintering in large ferrous metallurgy sintering plants. They are the main equipment during the sintering process which can singularize concentrate fines and rich ore powder as well as remove detrimental impurities such as sulfur, phosphor, and arsenic.
我厂设计制造烧结机已有几十年的历史，产品系列化，规格齐全，从KSH018到KSH450共有9种规格。我厂通过消化吸收移植用外烧结机的先进技术，设计制造了KSH180、KSH220、KSH265三种烧结机，特别是我厂同国外联合设计制造的KSH450烧结机，已被国家重点工程宝钢选用，其水平已达当代世界先进水平。
Our factory has been engaged in design and manufacture of sintering machine for dozens of years. We are now able to manufacture a series of products with 9 specifications from KSH018 to KSH450. By introducing advanced technology of sintering machine, we have designed and manufactured three types of sintering machines i.e. KSH180, KSH220 and KSH265. Especially the KSH450 sintering machines jointly designed and manufactured by our factory with foreign countries have been selected and used by Baosteel, the state keyu project. The technology it employs has reached advanced world level.
烧结机按烧结面积划分为不同长度，不同宽度几种规格，用户根据其产量或场地情况进行选用。烧结面积越大，产量就越高。
Sintering machines can be divided into several specifications of different lengths and widths according to their sintering area. The users can select them according to their output and site conditions. The larger the sintering area is, the higher the output is.
烧结机主要由下列部分组成：铺底料装置、原料给料装置、原料溜槽、多柔传动装置、头部链轮、吸风装置、台车、头部台架、中部台架、尾部台架、移动架、一号灰箱、二号灰箱、头部端部密封、尾部端部密封、头部密封罩、尾部密封罩、润滑系统、隔热装置、篦条压辊、篦条清扫器、粘结矿检测装置、台车吊具、各检测平台等。
The main parts of sintering machine are: Grate-layer material device, raw material feeding device, raw material chute, multi-flexible transmission device, chain wheel at the head part, suction unit, trolley, rack at the head part, rack in the middle, rack at the end, movable frame, No. 1 ash bin, No. 2 ash bin, seals at the head part, seal at the end, seal cover at the head part, seal cover at the end, lubricating system, heat insulation device, grate bar compression roller, grate bar cleanser, bonding ore detector, trolley hanger, each testing platform, etc
主要技术性能参数
Main Technical Performance and Specification
| 1.
型号规格
KSH018 带式烧结机 1. KSH018 straight-line sintering machine 有效烧结面积m2： 18 Effective sintering area (m2)： 18 台车规格（宽×长）m：1.5×1 Trolley specification (W×L) (m)：1.5×1 台车数量块:40 Number of trolley: 40 有效烧结面长度m:12 Effective sintering length (m): 12 台车移动速度m/min:0.7-2.1 Moving speed of trolley (m/min): 0.7-2.1 料层****厚度mm:250 Maximum thickness of material bed (mm): 250 设备最高产量t/h:36 Highest output of equipment (t/h): 36 链轮转数r/min:0.074-0.022 Rotating speed of chain wheel (r/min): 0.074-0.022 主电机型号:ZO2-81 Model of main motor: ZO2-81 主电机功率:13 Power of main motor: 13 主电机转数r/min:1000 Rotating speed of main motor (r/min): 1000 主减速机速比:44497.54 Speed ratio of main speed reducer: 44497.54 圆辊给料机用电机型号:ZO2-71 Motor model for roller type feeder: ZO2-71 圆辊给料机用电机功率:3 Motor power for roller type feeder: 3 圆辊给料机用电机转数r/min:1000 Motor rotating speed for roller type feeder (r/min): 1000 风箱负压（mmH2O）:900 Negative pressure for bellows （mmH2O）:900 润滑油站型号:DGZ-500 Model of lubrication station: DGZ-500 |
2.型号规格 KSH075 带式烧结机 2. KSH075 straight-line sintering machine 有效烧结面积m2： 75 Effective sintering area (m2)： 75 台车规格（宽×长）m：2.5×1 Trolley specification (W×L) (m)：2.5×1 台车数量块:85 Number of trolley: 85 有效烧结面长度m:30 Effective sintering length (m): 30 台车移动速度m/min:1.4-4.2 Moving speed of trolley (m/min): 1.4-4.2 料层****厚度mm:300 Maximum thickness of material bed (mm): 300 设备最高产量t/h:135 Highest output of equipment (t/h): 135 链轮转数r/min:0.165-0.499 Rotating speed of chain wheel (r/min): 0.165-0.499 主电机型号:JZT62-4 Model of main motor: JZT62-4 主电机功率:17 Power of main motor: 17 主电机转数r/min:1200-240 Rotating speed of main motor (r/min): 1200-240 主减速机速比:442 Speed ratio of main speed reducer: 442 圆辊给料机用电机型号:JZT42-4 Motor model for roller type feeder: :JZT42-4 圆辊给料机用电机功率:5.5 Motor power for roller type feeder: 5.5 圆辊给料机用电机转数r/min:120-1200 Motor rotating speed for roller type feeder (r/min): 120-1200 风箱负压（mmH2O）:1200 Negative pressure for bellows （mmH2O）: 1200 润滑油站型号:DGZ-50 Model of lubrication station: DGZ-50 |
| 3.型号规格 KSH130 带式烧结机 3. KSH130 straight-line sintering machine 有效烧结面积m2： 130 Effective sintering area (m2)：130 台车规格（宽×长）m：2.5×1 Trolley specification (W×L) (m)：2.5×1 台车数量块:129 Number of trolley: 129 有效烧结面长度m:52 Effective sintering length (m): 52 台车移动速度m/min:2.4-7.2 Moving speed of trolley (m/min): 2.4-7.2 料层****厚度mm:300或350 Maximum thickness of material bed (mm): 300 or 350 设备最高产量t/h:234 Highest output of equipment (t/h): 234 链轮转数r/min:0.275-0.825 Rotating speed of chain wheel (r/min): 0.275-0.825 主电机型号:ZZJ2-51 Model of main motor: ZZJ2-51 主电机功率:30 Power of main motor: :30 主电机转数r/min:680 Rotating speed of main motor (r/min): 680 主减速机速比:216.63 Speed ratio of main speed reducer: 216.63 圆辊给料机用电机型号:ZO2-91 Motor model for roller type feeder: ZO2-91 圆辊给料机用电机功率:7.5 Motor power for roller type feeder: 7.5 圆辊给料机用电机转数r/min:1000 Motor rotating speed for roller type feeder (r/min): 1000 风箱负压（mmH2O）:1200 Negative pressure for bellows （mmH2O）: 1200 润滑油站型号:DGZ-500 Model of lubrication station: DGZ-500 |
4.型号规格 KSH220 带式烧结机 4. KSH220 straight-line sintering machine 有效烧结面积m2：220.5 Effective sintering area (m2)：220.5 台车规格（宽×长）m：3.5×1 Trolley specification (W×L) (m)：3.5×1 台车数量块:112 Number of trolley: 112 有效烧结面长度m:63 Effective sintering length (m): 63 台车移动速度m/min:2.06-6.18 Moving speed of trolley (m/min): 2.06-6.18 料层****厚度mm:460 Maximum thickness of material bed (mm): 460 设备最高产量t/h:通过量1000 Highest output of equipment (t/h): passing amount 1000 链轮转数r/min:0.154-0.462 Rotating speed of chain wheel (r/min): 0.154-0.462 主电机型号:ZZJ2-51 Model of main motor: ZZJ2-51 主电机功率:30 Power of main motor: 30 主电机转数r/min:680 Rotating speed of main motor (r/min): 680 主减速机速比:1474.7 Speed ratio of main speed reducer: 1474.7 圆辊给料机用电机型号:ZO2-91 Motor model for roller type feeder: ZO2-91 圆辊给料机用电机功率:10 Motor power for roller type feeder: 10 圆辊给料机用电机转数r/min:500-1500 Motor rotating speed for roller type feeder (r/min): 500-1500 风箱负压（mmH2O）:1300 Negative pressure for bellows （mmH2O）: 1300 润滑油站型号:DXZ-630 Model of lubrication station: DXZ-630 |
| 5.型号规格 KSH450 带式烧结机 5. KSH450 straight-line sintering machine 有效烧结面积m2：450 Effective sintering area (m2)： 450 台车规格（宽×长）m：5×1.5 Trolley specification (W×L) (m)：5×1.5 台车数量块:136 Number of trolley: 136 有效烧结面长度m:90 Effective sintering length (m): 90 台车移动速度m/min:1.9-5.3 Moving speed of trolley (m/min): 1.9-5.3 料层****厚度mm:600 Maximum thickness of material bed (mm): 600 设备最高产量t/h:625 Highest output of equipment (t/h): 625 链轮转数r/min:0.147-0.441 Rotating speed of chain wheel (r/min): 0.147-0.441 主电机型号:SF-KH-250M Model of main motor: SF-KH-250M 主电机功率:45 Power of main motor: 45 主电机转数r/min:300-900 Rotating speed of main motor (r/min): 300-900 主减速机速比:2040.8 Speed ratio of main speed reducer: :2040.8 圆辊给料机用电机型号SF-KH-225S Motor model for roller type feeder: SF-KH-225S 圆辊给料机用电机功率:15 Motor power for roller type feeder: 15 圆辊给料机用电机转数r/min:300-900 Motor rotating speed for roller type feeder (r/min): 300-900 风箱负压（mmH2O）:1800 Negative pressure for bellows （mmH2O）: 1800 润滑油站型号: Model of lubrication station: |
6.型号规格 KSH050 带式烧结机 6. KSH050 straight-line sintering machine 有效烧结面积m2： 50 Effective sintering area (m2)： 50 台车规格（宽×长）m：2×1 Trolley specification (W×L) (m)：2×1 台车数量块:70 Number of trolley: 70 有效烧结面长度m:25 Effective sintering length (m): 25 台车移动速度m/min:1.6-4.8 Moving speed of trolley (m/min): 1.6-4.8 料层****厚度mm:300 Maximum thickness of material bed (mm): 300 设备最高产量t/h:124 Highest output of equipment (t/h): 124 链轮转数r/min:0.133-0.398 Rotating speed of chain wheel (r/min): 0.133-0.398 主电机型号:ZO2-81 Model of main motor: ZO2-81 主电机功率:13 Power of main motor: 13 主电机转数r/min:1000 Rotating speed of main motor (r/min): 1000 主减速机速比:203 Speed ratio of main speed reducer: 203 圆辊给料机用电机型号:ZO2-61 Motor model for roller type feeder: ZO2-61 圆辊给料机用电机功率:3 Motor power for roller type feeder: 3 圆辊给料机用电机转数r/min:1500 Motor rotating speed for roller type feeder (r/min): 1500 风箱负压（mmH2O）:1000-1100 Negative pressure for bellows （mmH2O）:1000-1100 润滑油站型号:DGZ-500 Model of lubrication station: DGZ-500 |
| 7.型号规格 KSH090 带式烧结机 7. SH090 straight-line sintering machine 有效烧结面积m2： 90 Effective sintering area (m2)： 90 台车规格（宽×长）m：2.5×1 Trolley specification (W×L) (m)： 2.5×1 台车数量块:97 Number of trolley: 97 有效烧结面长度m:36 Effective sintering length (m): 36 台车移动速度m/min:2-6 Moving speed of trolley (m/min): 2-6 料层****厚度mm:300 Maximum thickness of material bed (mm): 300 设备最高产量t/h:173 Highest output of equipment (t/h): 173 链轮转数r/min:0.236-0.709 Rotating speed of chain wheel (r/min): 0.236-0.709 主电机型号:JZT71-4 Model of main motor: JZT71-4 主电机功率:22 Power of main motor: 22 主电机转数r/min:1250-250 Rotating speed of main motor (r/min): 1250-250 主减速机速比:323.78 Speed ratio of main speed reducer: 323.78 圆辊给料机用电机型号:JZT51-4 Motor model for roller type feeder: :JZT51-4 圆辊给料机用电机功率:7.5 Motor power for roller type feeder: 7.5 圆辊给料机用电机转数r/min:250-1250 Motor rotating speed for roller type feeder (r/min): 250-1250 风箱负压（mmH2O）:1200 Negative pressure for bellows （mmH2O）: 1200 润滑油站型号:DGZ-500 Model of lubrication station: DGZ-500 |
8.型号规格 KSH180 带式烧结机 8. KSH180 straight-line sintering machine 有效烧结面积m2： 181.125 Effective sintering area (m2)： 181.125 台车规格（宽×长）m：3.5×1 Trolley specification (W×L) (m)： 3.5×1 台车数量块:97 Number of trolley: 97 有效烧结面长度m:51.75 Effective sintering length (m): 51.75 台车移动速度m/min:1.5-4.5 Moving speed of trolley (m/min): 1.5-4.5 料层****厚度mm:500 Maximum thickness of material bed (mm): 500 设备最高产量t/h:通过量800 Highest output of equipment (t/h): passing amount 800 链轮转数r/min:0.117-0.351 Rotating speed of chain wheel (r/min): 0.117-0.351 主电机型号:ZZJ2-51 Model of main motor: ZZJ2-51 主电机功率:30 Power of main motor: 30 主电机转数r/min:680 Rotating speed of main motor (r/min): 680 主减速机速比:总速比1935.5 Speed ratio of main speed reducer: total speed ratio 1935.5 圆辊给料机用电机型号:ZO2-91 Motor model for roller type feeder: ZO2-91 圆辊给料机用电机功率:10 Motor power for roller type feeder: 10 圆辊给料机用电机转数r/min:500-1500 Motor rotating speed for roller type feeder (r/min): 500-1500 风箱负压（mmH2O）:1300 Negative pressure for bellows （mmH2O）: 1300 润滑油站型号:DXZ-630 Model of lubrication station: DXZ-630 |
| 9.型号规格 KSH265 带式烧结机 9. KSH265 straight-line sintering machine 有效烧结面积m2：265.125 Effective sintering area (m2)：265.125 台车规格（宽×长）m：3.5×1 Trolley specification (W×L) (m)： 3.5×1 台车数量块:129 Number of trolley: 129 有效烧结面长度m:75.75 Effective sintering length (m): 75.75 台车移动速度m/min:2.06-6.18 Moving speed of trolley (m/min): 2.06-6.18 料层****厚度mm:500 Maximum thickness of material bed (mm): 500 设备最高产量t/h:通过量1000 Highest output of equipment (t/h): passing amount 1000 链轮转数r/min:0.154-0.462 Rotating speed of chain wheel (r/min): 0.154-0.462 主电机型号:ZZJ2-51 Model of main motor: ZZJ2-51 主电机功率:30 Power of main motor: 30 主电机转数r/min:680 Rotating speed of main motor (r/min): 680 主减速机速比:1474.7 Speed ratio of main speed reducer: 1474.7 圆辊给料机用电机型号:ZO2-91 Motor model for roller type feeder: ZO2-91 圆辊给料机用电机功率:10 Motor power for roller type feeder: 10 圆辊给料机用电机转数r/min:500-1500 Motor rotating speed for roller type feeder (r/min): 500-1500 风箱负压（mmH2O）:1300 Negative pressure for bellows （mmH2O）: 1300 润滑油站型号:DXZ-630 Model of lubrication station: DXZ-630 |
