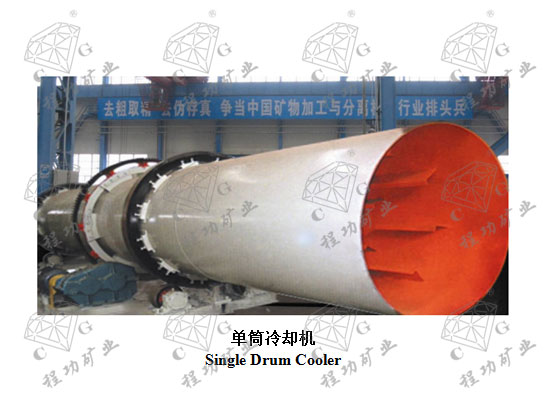

单筒冷却机 Single Drum Cooler
单筒冷却机是回转窑系统中重要设备之一，单筒冷却机的作用是将从回转窑出来的孰料（1000-1200）通过筒体回转带动物料与空气进行充分热交换，冷却机使物料冷却到200以下，同时提高孰料质量和易磨性，将冷却物料后的空气全部入窑，作为二次循环空气，提高了窑的热效率。
Single drum coolers are one of the important types of equipment in rotary kiln system. Their function is to get the clinker from the rotary kiln (1000 – 1200) to drive materials to conduct full heat exchange with the air through the rotation of drum. The cooler gets the temperature of material to below 200℃. At the same time, the quality and grindability of clinker are improved. The air after the materials are cooled down all enters into the kiln to be secondary circulating air. The thermal efficiency of kiln will be improved.
单筒冷却机具有结构简单，运转率高，操作维护方便等特点。
Single drum coolers have characteristics such as simple structure, high operation rate, and easy operation and maintenance.
技术参数
| 规格 | 生产能力 | 转速 | 电机功率 | 减速机 | 总重 |
| t/h | r/min | kw | t | ||
| ф1.2×12 | 1.9-2.5 | 4.5 | 11 | ZQ50 | 22 |
| ф1.5×15 | 4-6 | 4.5 | 18.5 | ZQ65 | 33 |
| ф2×20 | 7-8 | 3 | 30 | ZL75 | 74 |
| ф2.2×22 | 10-11.5 | 3 | 30 | ZL75 | 82 |
| ф2.5×25 | 11-15 | 3.5 | 45 | ZL100 | 108 |
| ф2.8×28 | 14-17 | 3.5 | 55 | ZL100 | 142 |
| ф3×30 | 16-20 | 3.5 | 112 | ZL115 | 156 |
