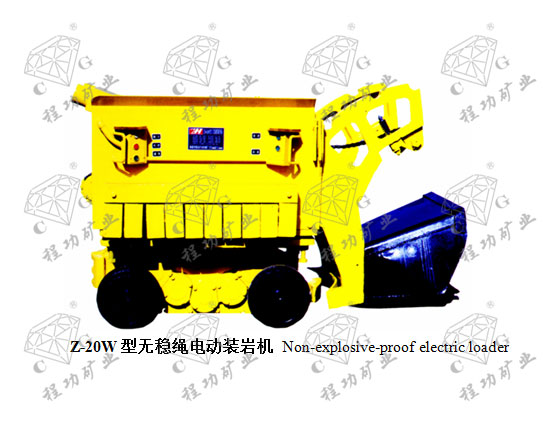

Z-20W型无稳绳电动装岩机 Non-explosive-proof electric loader
用途：主要在矿井或巷道里，将放炮崩落下来的岩石或矿石装入矿车，实现装载工作机械化，提高劳动生产率。
Application: It is mainly used in mines or roadways to load the rocks or ores from blast firing into mine cars, to realize mechanization of loading and improve labor productivity.
特点：与Z-20C比有耐用、无需调整或校正钢丝绳、工作效率高等。
Characteristic: Compared with Z-20C electric loaders, such electric loaders are more endurable, do not need to adjust or calibrate steel wire ropes, and are more efficient.
| 型号规格 Model | Z-20w | Z-20WA | Z-30W | |
| 装载能力Capacity | m3/h | 40 | 40 | 60 |
| 型号规格 Model | m | 0.2 | 0.2 | 0.3 |
| 装载宽度 width | m | 1.9 | 1.9 | 2.5 |
| 轨距 Track base | mm | 600 | 600 | 600 |
| 功率 Power | kw | 10.5 | 10.5 | 13 |
| 卸载高度 Dumping height | mm | 1250 | 1320 | 1300 |
| 卸载距离 | mm | 350 | 350 | 350 |
| 外型尺寸Outside dimension | mm | 2117×1070 ×1940 | 2117×1070 ×2020 | 2590×1200 ×2250 |
| 重量Weight | kg | 3500 | 3700 | 4400 |
