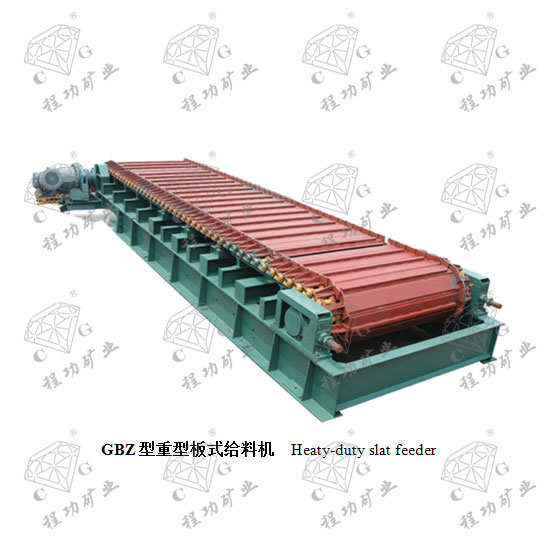

GBZ型重型板式给料机 Heaty-duty slat feeder

GBZ重型机可输送较大粒度，一般不大于板宽的60%，其安装倾角不大于15°。规格有槽宽1000、1250、1500、2000、2500、3150毫米，长度为420米，能力60-200m³/h。

GBZ heavy-duty slat feeders are capable of conveying large granules of materials, whose widths are usually not larger than 60% of those of the conveying boards. They are installed at an inclination angle of not larger than 15℃. Their chutes can be 1,000mm, 1,250mm, 1,500mm, 2,000mm, 2,500mm, and 3,150mm in width and 420m in length with a feeding speed of 60-200m³/h.

型号规格 Model	链板		给料粒度 Feed size	给料能力 Feed capa.	外形尺寸 Dimension	功率 Power	总重 Weight
	宽度	轴距	给料粒度 Feed size	给料能力 Feed capa.	外形尺寸 Dimension	功率 Power	总重 Weight
	mm	mm	mm	m³/h	mm	kw	t
GBZ120-4.5	1200	4500	≤500	100	6983×5228×2080	15	31.279
GBZ120-5	1200	5000	≤500	100	7593××5228×2080	15	33.437
GBZ120-5.6	1200	5600	≤500	100	8183×5228×2080	15	34.321
GBZ120-6	1200	6000	≤500	100	8683×5228×2080	15	35.9
GBZ120-8	1200	8000	≤500	100	10533×5293×2080	22	41.342
GBZ120-8.7	1200	8700	≤500	100	11383×5293×2080	22	43.164
GBZ120-10	1200	10000	≤500	100	12583×5293×2080	22	46.962
GBZ120-12	1200	12000	≤500	100	14653×5293×2080	22	51.844
GBZ120-15	1200	15000	≤500	100	17658×5518×2080	30	62.157
GBZ150-4	1500	4000	≤600	100	6613×5528×2080	15	33.197
GBZ150-6	1500	6000	≤600	150	8683×5593×2080	22	39.757
GBZ150-7	1500	7000	≤600	150	9633×5593×2080	22	43.352
GBZ150-8	1500	8000	≤600	150	10533×5593×2080	22	45.962
GBZ150-9	1500	9000	≤600	150	11683×14653×2080	30	50.522
GBZ150-12	1500	12000	≤600	150	5668×5888×2080	45	59.915
GBZ180-8	1800	8000	≤800	240	10533×6188×2080	45	51.36
GBZ180-9.5	1800	9500	≤800	240	12033×6188×2080	45	57.397
GBZ180-10	1800	10000	≤800	240	12593×6188×2080	45	59.623
GBZ180-12	1800	12000	≤800	240	14653×6188×2080	45	66.029
GBZ240-4	2400	4000	≤1000	400	6613×6718×2080	30	44.78
GBZ240-5	2400	5000	≤1000	400	7533×6718×2080	30	50.73
GBZ240-5.6	2400	5600	≤1000	400	8133×6718×2080	30	52.447
GBZ240-10	2400	10000	≤1000	400	12593×6718×2080	45	76.373
GBZ240-12	2400	12000	≤1000	400	14653×6718×2080	45	85.331
GBZ340-8	3400	8000	≤1200	1550	10095×10670×1230	40×2	89.5
