·DSP、DSJ、SD、SJ型水平可伸缩带式输送机 Extens

带式输送机

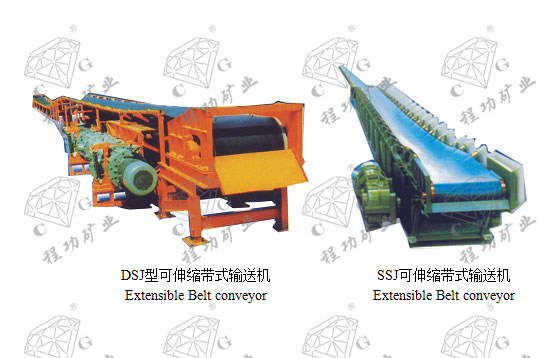

DSP、DSJ、SD、SJ型水平可伸缩带式输送机 Extensible Belt conveyor

带式输送机是通用型系列产品，以棉帆布、尼龙，聚酯帆布和钢丝绳芯输送带作拽引构件的连续输送设备，可广泛用于电力、煤炭、矿山、钢铁、建材、化工、烟草、环保、粮食、轻工、石油等众多行业。输送松散密度为500-2500kg/m3的各种散状、块状或成件物品，具有运量大、爬坡能力强、噪音小、维护方便、易损件互换性好等特点，便于实现运输系统自动化控制，工作环境的温度为<40℃。

Belt conveyors are universal series products which use cotton canvas, nylon, polyester canvas and steel cord conveyor belts as traction member of continuous conveyor equipment and are widely applied in many industries such as power, coal, mining, steel, building material, chemical, tobacco, environmental protection, grain, light industry and petroleum industry. They convey various kinds of bulk products, massive products and product pieces with bulk density of 500-2,500kg/m³. Their characteristics are great conveyance ability, strong gradeability, low noise, easy maintenance, good interchangeability of easily damaged parts, easy for the realization of automation control of conveying system. Their working temperature shall be lower than 40℃.

型号规格 Model	运量 capa.	运距 Max length	带宽 Belt width	带速Speed	电机功率 Power	传动滚筒直径 Drum Dia.	托辊直径 Roller Dia.	整机质量 Weight
型号规格 Model	t/h	m	mm	m/s	kw	mm	mm	t
DSP1010/650	100	1000	650	1.6	40	500	108	57.12
DSP1010/650	100	1000	650	1.6	40	500	108	12.42
DSJ65/10/55	100	1000	650	2	55	500	108	58.83
DSJ65/10/2×40	100	800	650	2	2×40	500	108	50.19
SD-44	200	800	650	1.6	2×22	500	89	40.17
SJ-44	200	800	650	1.6	2×22	500	89	52.08
DSJ65/30/2×55	300	1300	650	2.5	2×55	500	108	74.28
DSJ80/20/40	200	350	800	2	40	450	89	26.28
DSJ80/40/55	300	300	800	2	55	450	108	24.54
DSP1040/800	400	1000	800	2	90	630	108	78.38
SD-80	400	600	800	2	2×40	500	89	43.46
SJ-80	400	600	800	2	2×40	500	89	48.59
DSJ80/40/2×55	400	300	800	2	2×55	500	108	39.26
DSJ100/63/2×125	500	1000	1000	2	2×125	630	108	75
DSP1063/1000	630	1000	1000	2	125	630	108	95
SDJ-150	630	700	1000	2	2×75	630	108	85.33
DSJ100/63/75	630	1000	1000	2	75	630	108
DSP1060/1000	630	1000	1000	2	75	630	108	91.5
DSJ100/63/2×125	630	1200	1000	2	2×125	630	108	125.93
DSJ100/63/2×125	630	1800	1000	2	2×125	630	108	119.63
DSJ100/63/2×125	630	1000	1000	2	2×125	630	108	133.17
DSJ100/70/2×125	700	1000	1000	2.5	2×125	630	108	78.6
DSL100/70/160	700	1200	1000	2	160	630	108	114.12
DSJ100/75/2×160	750	1400	1000	2.5	2×160	630	108	99.66
DSP1080/1000	800	1000	1000	2.5	160	630	108	93.5
DSP1080/1000X	800	650	1000	2.5	160	630	108	76.24
SSJ1000/160	800	1000	1000	2.5	160	630	108	186.62
DSJ1080/1000	800	1000	1000	2.5	160	630	108	93.5
DSJ100/80/160	800	1000	1000	3.15	160	630	108	86.4
DSJ1080/1000	800	1000	1000	2.5	160	630	108	96.04
DSJ100/80/2×160	800	1000	1000	2.5	2×160	630	108	150.95
DSJ100/80/200	800	1200	1000	2.5	200	800	108	100.45
DST100/90/2×250	900	860	1000	2.5	2×250	800	133	88.49
DSJ100/90/2×110	900	1000	1000	2.5	2×110	630	108	75.52
DSJ120/80/3/3×315	800	2000	1000	3.5	3×315	830	133	74.95
SSJ1200/2×200	900	1000	1000	2.5	2×200	830	133	132.77
DSJ120/90/2/2×200	900	1000	1000	2.5	2×200	830	133	134.01
