·SSJ、DSJ型大运量长距离可伸缩带式输送机 Exte

SSJ、DSJ型大运量长距离可伸缩带式输送机 Extensible Belt conveyor

大运量长距离可伸缩带式输送机 Extensible Belt conveyor
型号规格 Model	运量 capa.	运距 Max length	带宽 Belt width	带速 Speed	电机功率 Power	传动滚筒直径 Drum Dia.	托辊直径 Roller Dia.	整机质量 Weight
型号规格 Model	t/h	m	mm	m/s	kw	mm	mm	t
SSJ1000/200	1000	1000	1000	3.15	200	800	108	117.84
SSJ1000/200	1000	1000	1000	3.15	200	800	108	108.75
DSJ100/100/200	1000	1000	1000	3.15	200	800	133	45.44
DSJ100/100/200	1000	1000	1000	3.15	200	800	133	101.45
DSJ100/100/250	1000	1500	1000	3.15	250	800	133	132.33
SSJ1200/2×200	1000	1000	1200	2.5	2×200	830	133	123.51
SSJ1200/2×200	1000	600	1200	2.5	2×200	800	133	108
DSJ120/100/2×200	1000	1000	1200	2.5	2×200	830	133	112.7
DSJ120/180/3×200	1000	1500	1200	3.3	3×200	800	133	217.32
SSJ1200/2×200	1000	1000	1200	2.5	2×200	830	133	123.51
SSJ1200/2×200	1200	1300	1200	2.5	2×200	800	133
SSJ1200/2×250	1200	1000	1200	2.5	2×250	800	133	192.46
SSJ1200/3×200M	1200	1500	1200	2.5	3×200	800	133	203.51
SSJ1200/3×200	1200	1500	1200	3.3	3×200	800	133	247
DSJ120/120/2×200	1200	1300	1200	3.15	2×200	830	133	176.34
DSJ120/120/2×220	1200	1500	1200	3.15	2×220	830	133	227.74
DSJ120/140/2×250	1400	600	1200	3.15	2×250	830	133	116.21
DSJ120/150/G3×200	1500	1500	1200	3.15	3×200	830	133	219.33
DSJ120/150/2×315	1500	1500	1200	3.15	2×315	1000	133	74.88
DSJ120/150/2×315	1500	1500	1200	3.15	2×315	1000	133	80.93
DSJ120/150/2×200	1500	1020	1200	3.15	2×200	830	133	174.71
SSJ1200/3×200M	1600	1500	1200	3.15	3×200	830	133	187.4
SSJ1200/4×200	1800	2700	1200	3.3	4×200	800	133	413.12
SSJ1200/3×200	1800	1500	1200	3.3	3×200	800	133	217.32
DSJ120/180/2×200	1800	1000	1200	3.15	2×200	800	133	124.29
SSJ1200/2×250	2000	1000	1200	3.5	2×250	830	133	123.8
SSJ1200/6×220	2500	3000	1200	4	6×220	830	159	441.67
DSJ140/300/3×400	3000	3000	1400	4	3×400	1000	159

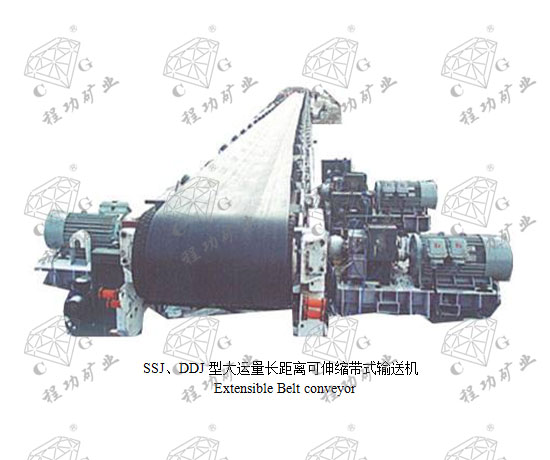

SSJ、DDJ型大运量长距离可伸缩带式输送机 Extensible Belt conveyor
