·DXK、DTL、STJ型固定带式输送机 Fixed belt conveyor

DXK、DTL、STJ型固定带式输送机 Fixed belt conveyor

主井、大巷固定带式输送机Fixed belt conveyor
型号规格 Model	运量 capa.	运距 Max length	带宽 Belt width	带速 Speed	倾角 Upper slope	电机功率 Power	传动滚筒直径 Drum Dia.	托辊直径 Roller Dia.	整机质量 Weight
型号规格 Model	t/h	m	mm	m/s	(°)	kw	mm	mm	t
DXK800/2×110S	186	878	800	2	15	2×110	800	89	82.72
DTL100/20×90S	200	550	1000	1.6	11	2×90	630	108	48.15
DXK1000/2×220	400	606	1000	2	15	2×220	1000	108	151.56
DXK1000/220	450	460	1000	2	16	220	1000	108	89.76
DXK1000/132	500	630	1000	2.5		132	1000	108	80.38
DTL100/2/50/2×280S	500	1050	1000	2.5	13	80	1250	108	47.89
DXK1000/2×315S	560	770	1000	2.5	17	2×315	1400	108	198.45
DTL100/80/2×160S	800	1000	1000	2.5		2×160	630	108
DXK1000/250	930	350	1000	3.15	15	250	1286	133	25.54
主井、大巷固定带式输送机Fixed belt conveyor
DXK1000/2×132	1000	150	1000	2	16	2×132	1000	108	41.47
STJ1000/2×220	1000	2060	1000	3.15		2×220	1000	133
DTL100/100/2×315	1000	1120	1000	3.15	5	2×315	1250	133	184.63
DXK1200/3×250	800	845	1200	2.5	13	3×250	1250	108	237.89
DXK1200/2×400	1000	1987	1200	3.4	0-12	2×400	1286	133	330.39
DXK1200/200	1000	406	1200	2.5	-13	200	800	133	94.52
DTL120/100/200	1000	614	1200	2.5		200	1000	108	101.32
DXK1200/2×630	1100	1086	1200	3.4	14	2×630	1400	133	389.55
STJ1200/2×250	1200	850	1200	2.5		2×250	800	133	287.33
STJ1200/2×200	1200	1500	1200	2.5		2×200	800	133	195.71
DTL120/180G4×200	1800	2000	1200	3.3		4×200	800	133	254.47
DTL140/250/2×355	2500	1280	1400	3.5		2×355	800	159	289.42
DTL160/330/3×1600	3300	1780	1600	4.5	12	3×1600	2040	159	431.66
转弯固定带式输送机Curred belt conveyor
DTL100/50/110	500	660	1000	2.5	≤10	110	630	108	52.14
DTL120/80/315	800	1160	1200	2.5	≤10	315	800	133	140.58

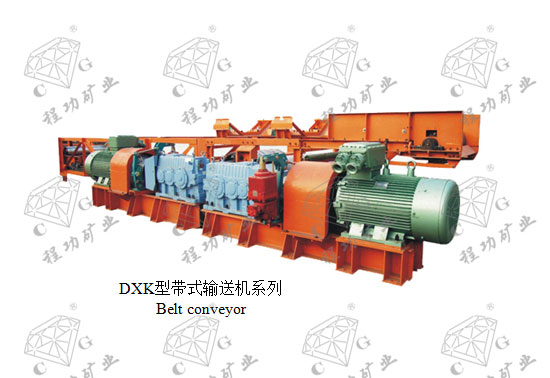

DXK型带式输送机系列 Belt conveyor
