·SGB、SGZ、SGD、XGZ型刮板输送机 Apron conveyor

SGB、SGZ、SGD、XGZ型刮板输送机 Apron conveyor

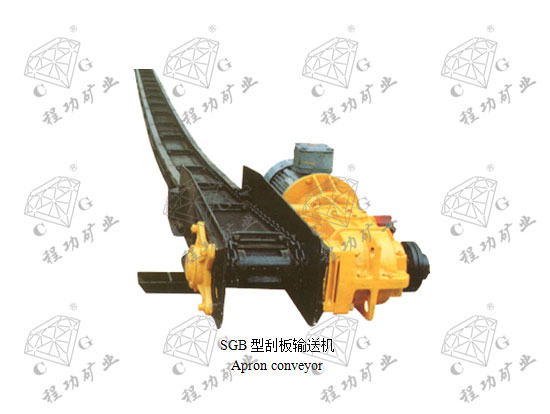

边双链刮板输送机Duble chain Apron conveyor
型号规格Model	设计长度 Length	输送量 Capa.	链速 Chain speed	功率Power	中槽部尺寸 Intermediate	链规格 Chain size	质量Weight
型号规格Model	m	t/h	m/s	kw	mm	mm	t
SGB280/7.5	40	30	0.63	7.5	1200×280×125	10×40	2.34
SGB280/11	60	30	0.63	11	1200×280×125	10×40	3.27
SGB420/40	100	100	0.86	40	1200×420×180	18×64	16
SGB420/22	80	60	0.86	22	1200×420×150	14×50	9.22
SGB420/30	100	80	0.86	30	1200×420×150	14×50	11.4
SGB420/30T	100	80	0.86	30	1200×420×150	14×50	11.4
SGB420/40TX	100	150	0.86	40	1200×420×180	18×64	16
SGB520/44	100	80	0.79	2×22	1200×520×150	14×50	13
SGB520/30	100	80	0.79	30	1200×520×150	14×50	11
SGB520/37	100	120	0.79	2×18.5	1200×520×150	14×50	12.5
SGB520/40	100	120	0.79	40	1200×520×150	14×50	14.5
SGB620/40	100	150	0.86	40	1500×620×180	18×64	17.6
SGB620/40T	100	150	0.86	40	1500×620×180	18×64	17.6
SGB620/80	160	150	0.86	2×40	1500×620×180	18×64	28
SGB620/80T	160	150	0.86	2×40	1500×620×180	18×64	35.6
SGB630/75	120	250	0.868	75	1500×630×190	18×64	49.1
SGB630/150	200	250	0.868	2×75	1500×630×190	18×64	81.1
SGB630/150D	200	250	0.868	2×75	1500×630×190	18×64	86.7
SGB630/150C	200	250	0.868	2×75	1500×630×190	18×64	87.6
SGB630/180	180	400	1	2×90	1500×630×222	22×86	100
SGB630/220	180	450	1	2×110	1500×630×222	22×86	100
SGB630/264	180	450	1	2×132	1500×630×222	22×86	100.4
SGB730/320	200	700	1.1	2×160	1500×680×222	26×92
SGB730/400	200	800	1.1	2×200	1500×680×222	26×92
SGB730/500	200	900	1.1	2×250	1500×680×222	26×92
SGB730/264	200	650	1.1	2×132	1500×680×222	26×92
SGB764/264	200	600	1.1	2×132	1500×764×222	26×92
SGB764/320	200	700	1.1	2×160	1500×764×222	26×92
SGB764/400	200	800	1.1	2×200	1500×764×222	26×92
SGB764/500	200	900	1.1	2×250	1500×764×222	26×92
SGB764/630	200	1000	1.1	2×315	1500×764×222	26×92
中双链刮板输送机Duble chain Apron conveyor
SGZ630/220	180	450	1	2×110	1500×630×222	22×86
SGZ730/320	200	600	0.9	2×160	1500×730×222	26×92
SGZ764/400	200	800	1.1	2×200	1500×764×222	26×92
SGZ830/630	230	1200	1	2×315	1500×780×290	34×126
中单链刮板输送机Single chain Apron conveyor
SGD280/7.5	40	30	0.63	7.5	1200×280×125	10×40	2.5
SGD280/11	60	30	0.63	11	1200×280×125	10×40	2.9
SGD320/17B	80	40	0.59	17	1200×320×150	14×50	6.5
SGD320/18.5	80	40	0.59	18.5	1200×320×150	14×50	6.6
SGD320/22	100	40	0.59	22	1200×320×150	14×50	8
SGD420/22	80	60	0.66	22	1200×420×150	14×50	8.5
SGD420/30	100	80	0.88	30	1200×420×150	14×50	9.8
SGD630/180	180	400	1	180	1500×630×222	26×92
SGD630/220	180	450	1	220	1500×630×222	26×92
SGD730/320	200	600	0.9	320	1500×730×222	30×108

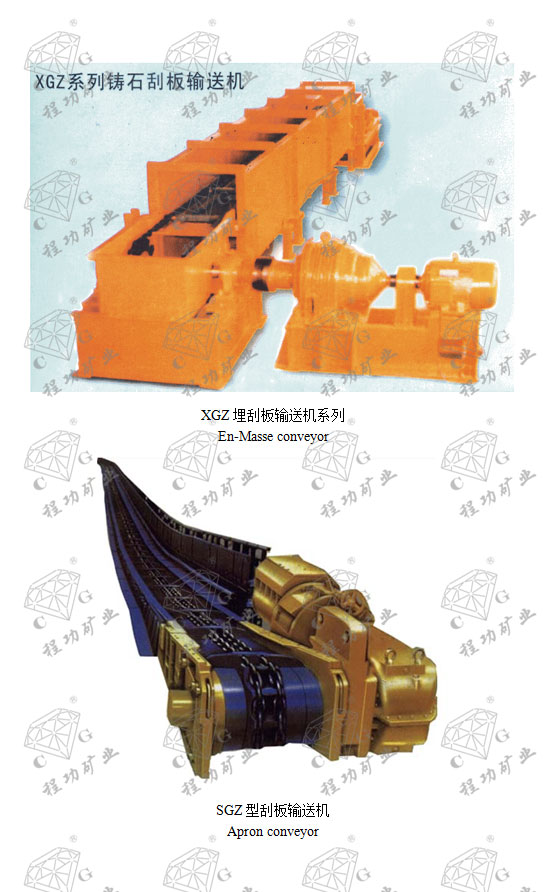

铸石槽刮板输送机Apron conveyor with casting stone trough
XGZ6	66	300	≤0.76	＜18.5	槽宽600
XGZ8	66	500	≤0.76	＜37	800
XGZ10	45	600	≤0.76	＜37	1000
XGZ12	65	800	≤0.76	＜75	1200
XGZ14	55	1000	≤0.76	＜75	1400
