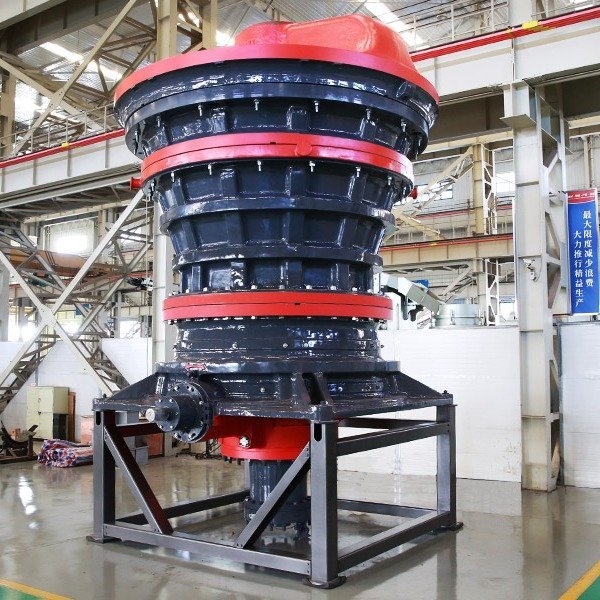

PXZ（重型）、PXQ（轻型）和PXF型旋回破碎机 Gyratory Crusher
旋回破碎机是冶金、建材、化工和水电部门用于粗碎矿石或岩石的主要设备之一，具有破碎比大、生产能力高、产品粒度均匀等特点。
Gyratory crusher is one of the main types of equipment used by metallurgy, building material, chemical, as well as water and power department to coarsely crush ores. It has characteristics such as big crushing ratio, high productive capacity, and uniform particle size of crushed products.
我厂设计制造旋回破碎机已有十多年的历史，其产品从PXZ0506至PXZ1623已形成系列。产品规格齐全、设计先进、性能可靠、工作平稳、能耗低。深受国内外用户的欢迎。
Our factory has been engaged in the design and production of crushers for more than ten years. We have now manufactured a series of products (from PXZ0506 to PXZ1623). Our products are complete in specification, advanced in design, reliable in performance, smooth in operation, and low in energy consumption. They are well received by users at home and abroad.
我厂生产的旋回破碎机有PXZ（重型）、PXQ（轻型）和PXF（引进）三个系列，其中PXZ系列用于破碎中等或中等以上硬度的各种物料；PXQ系列用于破碎中等或中等以下硬度的各种物料；PXF系列用于大型露天矿山和选矿厂。
Our factory manufactures three series of gyratory crushers. They are PXZ (heavy-duty), PXQ (light-duty), and PXF (introduced). PXZ crushers are used to crush all kinds of materials with medium hardness or above; PXQ crushers are used to crush all kinds of materials with medium hardness or below; and PXF crushers are used in large open-pit mines and ore dressing plants.
PXZ系列旋回破碎机性能参数表
| 型号规格 Model | 给矿口尺寸 | 排矿口尺寸 | ****给矿尺寸 | 排矿口调整范围 | 处理能力 |
| Feed size | Capacity | ||||
| mm | mm | mm | mm | t/h | |
| PXZ 0506 | 500 | 60 | 420 | 60～75 | 140～170 |
| PXZ 0710 | 700 | 100 | 580 | 100～130 | 310～400 |
| PXZ 0909 | 900 | 90 | 750 | 90～120 | 380～510 |
| PXZ 0913 | 130 | 130～160 | 625～770 | ||
| PXZ 0917 | 170 | 170～190 | 815～910 | ||
| PXZ 1216 | 1200 | 160 | 1000 | 160～190 | 1250～1480 |
| PXZ 1221 | 210 | 210～230 | 1560～1720 | ||
| PXZ 1417 | 1400 | 170 | 1200 | 170～200 | 1750～2060 |
| PXZ 1422 | 220 | 210～230 | 2160～2370 | ||
| PXZ 1618 | 1600 | 180 | 1350 | 180～210 | 2400～2800 |
| PXZ 1623 | 230 | 210～240 | 2800～3200 |
PXQ系列旋回破碎机性能参数表
| 型号规格 | 给矿口尺寸 | 排矿口尺寸 | ****给矿尺寸 | 排矿口调整范围 | 处理能力 |
| mm | mm | mm | mm | t/h | |
| PXQ 0710 | 700 | 100 | 580 | 100～120 | 200～240 |
| PXQ 0913 | 900 | 130 | 750 | 130～150 | 350～400 |
| PXQ 1215 | 1200 | 150 | 1000 | 150～170 | 720～815 |
PXF系列旋回破碎机性能参数表（表1）
| 型号规格 | 给矿口尺寸 | 排矿口尺寸 | ****给矿尺寸 | 处理能力 | 破碎圆锥底部直径 |
| mm | mm | mm | t/h | mm | |
| PXF 5474 | 1372(54”) | 152 | 1150 | 1740 | 1880(74”) |
| PXF 5484 | 203 | 2500 | 2134(84”) | ||
| PXF 6089 | 1524(60”) | 178 | 1300 | 3000 | 2260(89”) |
| PXF 60110 | 4000 | 2794(110”) | |||
| PXF 7293 | 1829(72”) | 178 | 1550 | 2620 | 2362(93”) |
PXF系列旋回破碎机性能参数表（表2）
| 型号规格 | 主 电 机 | 润滑站规格 | 冷却水耗量 | |||
| 型号 | 功率 | 转速 | 电压 | |||
| KW | r/min | KV | l/min | m3 /h | ||
| PXF 5474 | YR400-12/1180 | 400 | 490 | 6 | 250 | 22.5 |
| PXF 5484 | YR500-12/1180 | 500 | ||||
| PXF 6089 | YR118/46-12 | 500 | 190 | 400 | 23.5 | |
| PXF 60110 | YR500-12 | 355×2 | ||||
| PXF 7293 | YR500-20/1730 | 500 | 295 | 400 | 23.5 | |
