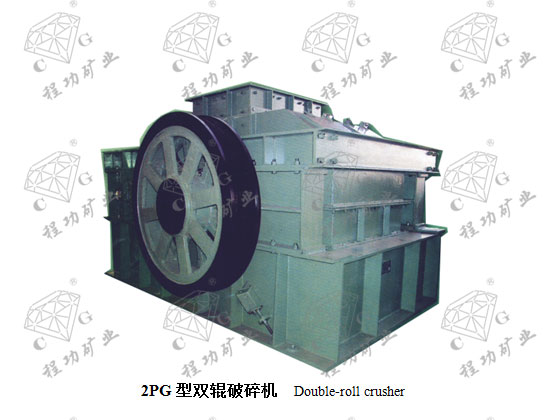

·2PG型双辊破碎机 Double-roll crusher

2PG型双辊破碎机 Double-roll crusher

本机主要用于粗碎、中碎各级硬度的煤、焦炭及其它低硬度的脆性物料。

The two types of the machines are designed to be used for the coarse and medium reduction of various kinds of coal and coke as well as other brittle materials of low hardness.

本机由机架、机身、辊轮等部件组成。电动机通过三角皮带传动主轴轮使辊轮按照已调整好的轨迹进行运转，将破碎腔机物料予破碎。

Such machine consists of the frame, the body, rollers, etc. The motor drives the main axis wheel through the triangle belt to get the rollers to operate along the already adjusted track so that the materials in the crusher can be crushed.

型号规格 Model	辊子尺寸 Rotor size	进料粒度 Inlet size	出料粒度 Output size	产量Capacity	功率Power	质量Weight
型号规格 Model	mm	mm	mm	t/h	kw	t
2PG400×250	Φ400×250	32	≤8	10	≤15	≤1.4
2PG600×400	Φ600×400	39	≤4	≤32	≤37	≤3.6
2PG610×750	Φ610×750	45	≤3	≤30	≤55	≤7.3
2PG750×500	Φ750×500	50	≤5	≤49	≤45	≤7.65
2PG900×900	Φ900×900	40	≤10	≤45	≤75	≤18.4
2PG1000×800	Φ1000×800	40	≤10	≤70	≤90	≤25.2
2PG1200×800	Φ1200×800	30	≤8	≤75	≤90	≤25.9
2PG1200×1000	Φ1200×1000	40	≤12	≤150	≤110	≤51

2PG型双辊破碎机 Double-roll crusher

·2PG型双辊破碎机 Double-roll crusher
