高压辊磨机 High-pressure Grinding Roller

应用于矿物原料粉磨的高压辊磨机

高压辊磨机用于矿物原料粉磨，已经被证实是最有效的矿物原料粉磨设备，广泛应用于铜矿石、金矿石、铁矿石、金刚石矿、铂矿石、煤，高炉矿渣，石灰石，水泥熟料以及其他矿物原料。

High-pressure grinding roller used to grind raw mineral materials

High-pressure grinding rollers which are used to grind raw mineral materials have been proven to be the most effective grinding apparatus of raw mineral materials. They are widely used to grind copper ore, gold ore, iron ore, diamond ore, platinum ore, coal, blast furnace slag, limestone, cement clinker and other raw mineral materials.

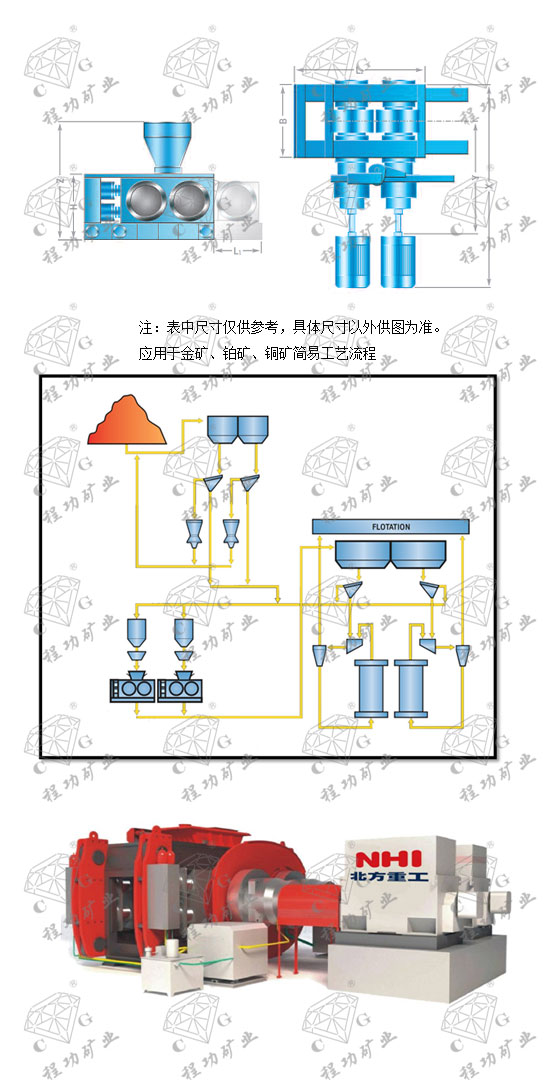

型号	辊面直径	辊面宽度	粉磨预紧力	驱动功率	L1	L2	B	H	Y	X
	mm	mm	KN	KW	mm	mm	mm	mm	mm	mm
9/7	950	650	2700	2×220	1150	2785	1860	1371	3620	4550
11/7	1100	650	3400	2×450	1300	3190	2150	1685	4430	5500
11/8	1100	800	3400	2×450	1300	3190	2150	1685	4430	5500
14/7	1400	650	4300	2×500	1600	3735	2164	1895	4497	5600
14/8	1400	800	4300	2×500	1600	3735	2164	1895	4497	5600
15/10	1520	950	7000	2×800	1720	4305	3030	2095	5316	6900
15/11	1520	1100	7000	2×800	1720	4305	3030	2095	5316	6900
17/10	1700	1000	7000	2×800	1900	4490	3030	2220	5230	6800
17/12	1700	1200	8600	2×1600	1900	4870	3000	2390	6273	7800
17/14	1700	1400	8600	2×1600	1900	4870	3500	2370	6523	8300
19/15	1850	1500	11000	2×1850	2050	5220	3310	2635	6757	8400
20/15	2000	1500	11000	2×1850	2200	5365	3460	2855	6727	8500
20/15	2000	1500	13500	2×2500	2200	5805	3610	2795	7336	9200
22/16	2000	1550	17000	2×2800	2400	6370	3820	3160	7401	9300
24/17	2400	1650	17000	2×2800	2600	6575	3820	3180	7401	9300
26/18	2600	1750	20000	2×3400	2800	7215	4150	3510	7550	9600
