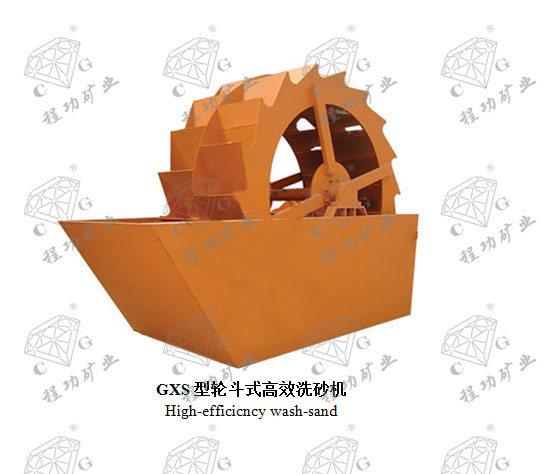

·GXS型轮斗式高效洗砂机 High-efficicncy wash-sand

GXS型轮斗式高效洗砂机 High-efficicncy wash-sand

GXS系列洗砂机采用国内外先进技术，结合国内砂石行业实际情况研制生产的配合制砂机使用的高效轮斗式洗砂设备。它具有洗净度高，结构合理，处理量大，功率消耗小，砂子流失少，故障率低等特点，是国内洗砂设备升级换代的****选择。

GXS sandstone washer adopts the technology in the world with high energy sowing. It has such features ad reasonable structure, large capacity, high washing degree, less loss loss of medium and dine sand , less breakdown and less wear with driving part separated from water and sand. Its breakdown rate is much lower than spiral sand washer. This machine has become customers’ priority to choose in the a sand industry dometic and abroad.

洗矿机工作时，电机通过三角带、减速机、齿轮减速后带动叶轮缓慢转动，砂石有给料槽进入洗槽中在叶轮的带动下翻滚，并互相研磨，除去覆盖砂石表面的杂质，同时破坏包覆砂粒的水汽层，以利于脱水；同时加水形成强大水流，及时将杂质及比重小的异物带走，并从溢出口洗槽排出，完成清洗作用。干净的砂石由叶片带走最后砂石从旋转的叶轮倒入出料槽，完成砂石的清洗作用。

During the operation of sand and gravel washer, the motor drives the slow rotation of the impeller after the V-belt, speed reducer and gears reduce their running speed. The sand enters from the feeding trough to the washing trough and turns over when driven by the impeller. The sand grinds each other and removes the impurities covering their surfaces. Besides, it destroys the water vapor layer cladding the sand to make it easier for dewatering. Then when water is added, strong current is formed to duly take away impurities and light foreign matters which are discharged out from the washing trough at the overflow outlet. So far the washing is finished. Clean sand is taken away by the impeller and poured into the discharge trough from the turning impellers to finish its washing.
