磨片机、抛光机适用于科研院校、厂矿试验室试样切割后研磨抛光、试样光谱分析前准备工作。结构有自动除尘、自动回收研磨砂等特点。
They serve polishing after sample cutting and preparing before sample spectroscopic analysis in the laboratory of institutes, factories and mines. They can automatically remove dust and recover grinding sand and so on.
磨片机、抛光机技术参数 Lapping machine and polishing machine
| 型号规格Model | 磨盘直径 grinding disc diameter |
转速 Rotational speed |
功率 Power |
外形尺寸 Overall dimension |
质量 Weight |
|---|---|---|---|---|---|
| mm | r/min | kw/v | mm | kg | |
| SMS-250台式磨片机 Table lapping machine |
Φ250 | 500-1000 | 0.6/380 | 446×635×407 | 64 |

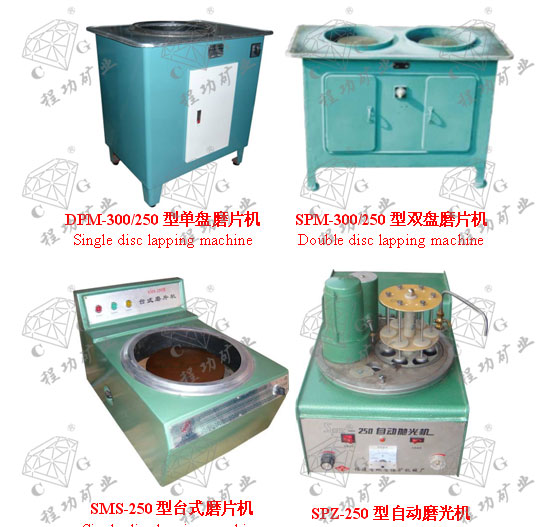

| DPM-250单盘磨片机 Single disc lapping machine |
Φ250 | 800-1200 | 1.1/380 | 820×610×980 | 160 |
| DPM-300单盘磨片机 Single disc lapping machine |
Φ300 | 800-1200 | 1.1/380 | 820×610×980 | 164 |

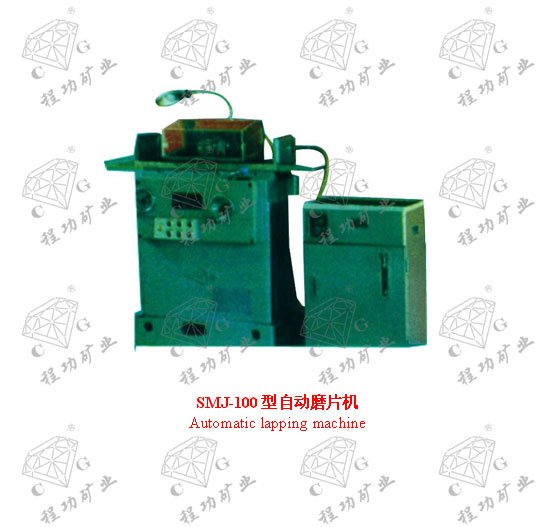

| SMJ-100自动磨片机 automatic lapping machine |
Φ100 | 4800 | 1.1/380 | 1130×860×1130 | 550 |
| SPM-250双盘磨片机 Double disc lapping machine |
Φ250 | 800-1200 | 1.1/380 | 1296×606×946 | 210 |
| SPM-300双盘磨片机 Double disc lapping machine |
Φ300 | 800-1200 | 1.1/380 | 1296×606×946 | 210 |
| SM400Ⅰ双盘磨样机 Double disc polishing machine |
Φ400 | 1400-2850 | 1.5/380 | 1000×500×800 | 180 |
| SM400Ⅱ双盘磨样机 Double disc polishing machine |
Φ400 | 1400-2850 | 1.5/380 | 1000×500×900 | 175 |
| SM200自动双盘磨样机 Automatic double disc polishing machine |
Φ200 | 1400 | 1.5/380 | 1296×606×946 | 90 |
| SKM-160自动磨块机 Sutomatic polishing machine |
Φ160 | 3200 | 1.1//380 | 1660×990×1210 | 1180 |
| SPT-250调速抛光机 Polishing machine |
Φ250 | 0-1000 | 0.355/220 | 600×360×356 | 40 |
| SPZ-250自动抛光机 Automatic polishing machine |
Φ250 | 0-1000 | 0.355/220 | 600×360×438 | 50 |
| MPW-150万能磨抛机 Polishing machine |
Φ150 | 0-500 | 0.355/220 | 600×360×356 | 50 |

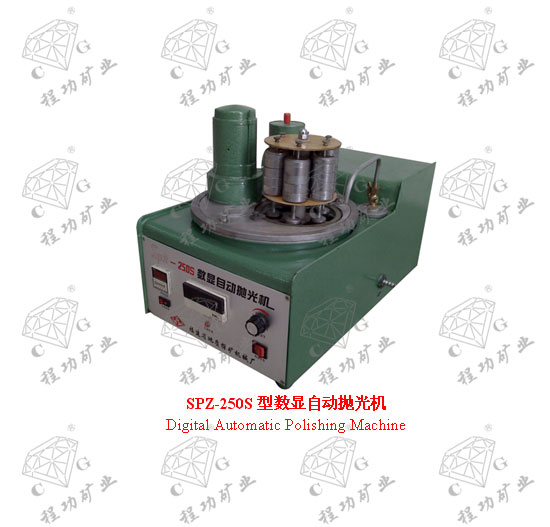

| SPZ-250S数显自动抛光机 Digital Automatic Polishing Machine |
Φ250 | 0-1000 | 0.355/220 | 600×360×356 | 50 |
