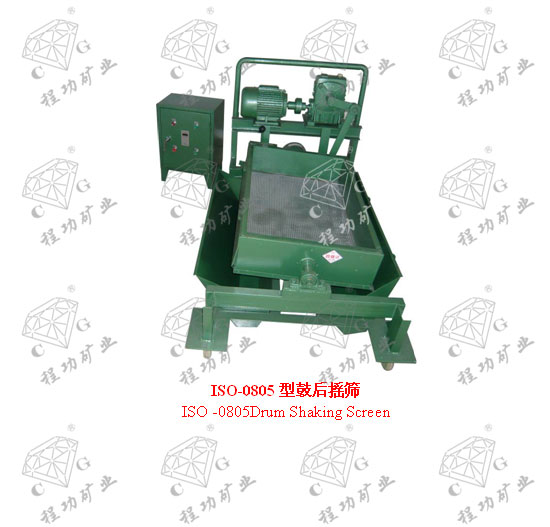

试验室ISO-0805型鼓后摇筛技术参数 Technical Para

一、作用

ISO鼓后摇筛适用于筛分冶金烧结矿，是替代人工手筛筛分、减轻操作人员劳动强度、提高筛分正确性、可比性的理想设备。并具有结构紧凑、使用方便、运转可靠等特点。电器控制设有电子计数控制器，使筛内试料得到准确的筛分次数，消除手筛操作的人为误差。

ISO Drum Shaking Screen is applicable to screening of metallurgical sintered ore is an ideal apparatus to replace the manual screen for reducing labor intensity for operator and improving correctness and comparability of screening. It features compact structure, easy operation and reliable running among others. It is complete with Electronic Counting Controller, allowing test materials to have the correct screening frequency and avoiding human errors arising from manual operation of screen.

二、技术参数

三、结构简介

III. Structure

鼓后摇筛为移动式，可机器下方装有4个滑轮，由电器控控制箱单独控制，机电一体化设计，移动灵活。

The after drum shaking screen is mobile. The bottom of the machine is equipped with four wheels which are independently controlled by the electric control box. It adopts mechanical-electrical integration system design and can move freely.

本设备由一个减速电机、一个电机、轴承座、料箱、连杆机构、传动机座、接料盘等组成。

This equipment is composed of one reducing motor, one motor, bearing pedestal, feed box, linkage mechanism, drive stand, material receiving disk, etc.

1、机座由槽钢焊接、料箱支架通过轴承座支撑两边，由减速机传动摇臂，以20r/min来实现试样日的。

1. Its base is welded by channel steel. The feeder bracket supports its two sides through the bearing pedestal and the speed reducer drives the rocker arm at the speed of 20r/min, to test samples.

2、控制部件：由智能计数器控制。

2. Control assembly: Controlled by intelligent counter.

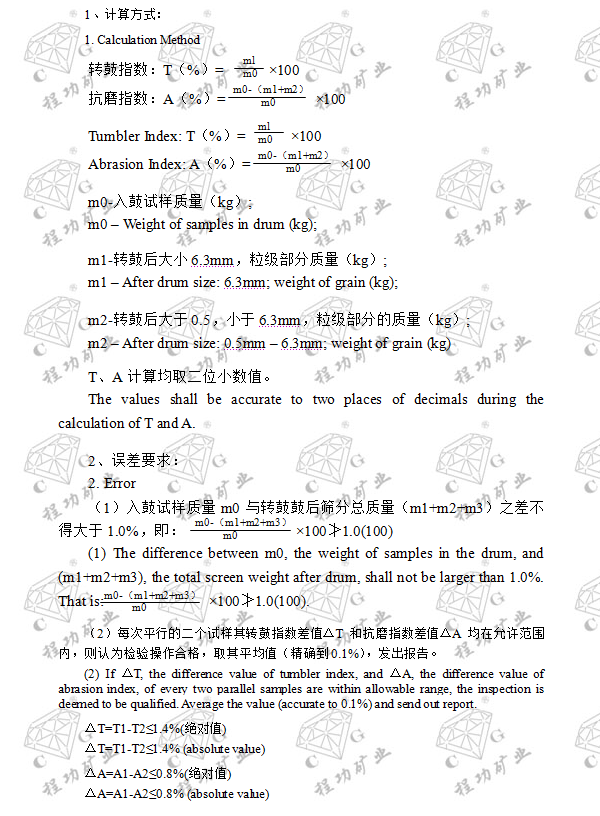

四、检验结果计算

IV. Calculation of Inspection Results
