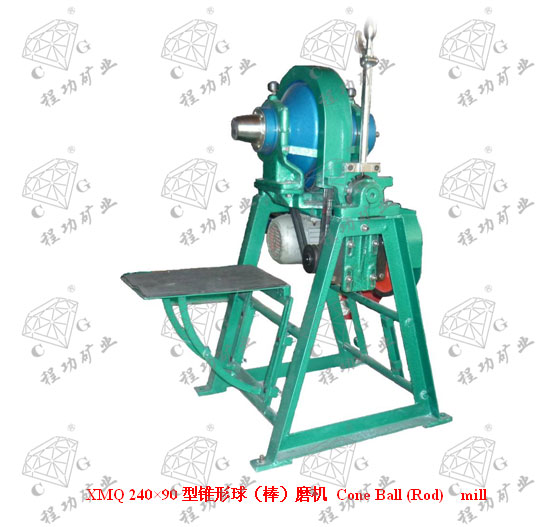

XMQ 系列锥形球磨机，是一种实验室磨矿设备。可供实验室湿法磨细矿石之用（其中 150 × 50 锥形球磨机亦可用于干磨），适用于冶金、建材、化工、轻工、煤炭、水电、农业和地质实验工作中的人工重砂、矿石技术加工等磨细物料之用。本产品由原地矿部唯一指定企业生产，执行行业标准。
XMQ Series Cone Ball Mill is a lab. grinding equipment for wet fine grinding of ore (150 × 50 Cone Ball Mill also can be used for dry grinding). It is applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building material, chemical, light, coal, water conservancy, electric power, agricultural and geological industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
| 型号规格 Model | 单位Uite | XMQ150×50 | XMQ150×100 | XMQ240×90 | XMQ350×160 |
| 锥形筒体尺寸 Drum size | mm | φ150×50 | φ150×100 | φ240×90 | φ350×160 |
| 筒体容积 Volume | L | 1 | 3 | 6.25 | 21.58 |
| 磨矿量Capacity | g | 200 | 400 | 1000 | 4000 |
| 给料粒度Feed size | mm | ≤3 | ≤3 | ≤3 | ≤3 |
| 出料粒度 Output size | mm | ≤0.074 | ≤0.074 | ≤0.074 | ≤0.074 |
| 筒体转速 Drum speed | r/min | 112 ± 2 | 112 ± 2 | 96 ± 2 | 62 ± 2 |
| 电机功率 Power | kw | 0.25 | 0.25 | 0.55 | 1.1 |
| 外形尺寸Voerall dimensions | mm | 915×530×1160 | 915×750×1160 | 1050×640×1164 | 700×575×1190 |
| 重量 Weight | kg | 90 | 130 | 170 | 300 |
我们要求服务人员时刻关注客户，及时解决设备问题，确保顾客的利益比一切都重要。
