试验室XFD新型单槽浮选机技术参数 Technical Par

实验室用XFD型系列单槽式浮选机供地质、冶金、建筑材料、化学等工业实验室浮选少量矿样用。本产品由原地矿部唯一指定企业生产，执行行业标准。

Lab.-used XFD Series Single Flotation Cell is provided for flotation of minor ore samples in labs of geological, metallurgical, building material, chemical and other industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

一、结构简介:

I. Structure

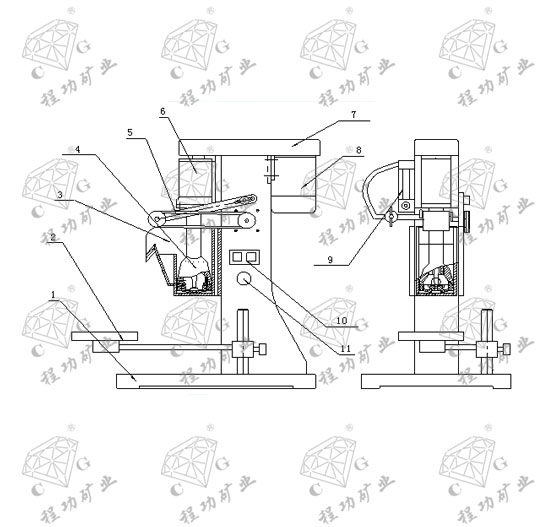

ＸＦＤ型系列浮选机由下列主要部件组成：

XFD flotation cell mainly consists of the following parts:

（１）机座（２）托板（３）槽体（４）搅拌部（５）刮板部分（６）主轴部分（７）护罩（８）电机（9）流量计（10）控制开关（11）刮板开关

(1) Base (2) support plate (3) cell body (4) agitation part (5) scraper part (6) main shaft part (7) shield (8) motor (9) flowmeter (1) control switch (11) scraper switch

所有部件都紧固在机体上，主轴（１）按顺时针方向转动，运动由皮带轮通过皮带到主轴皮带轮、主轴可得三种不同的速度、刮板（３）５的转动由刮板电动机通过皮带轮带动，可得二种不同的速度、刮板的位置可通过蝶形螺母调节高低。

All parts are fastened onto the machine body. The main shaft (1) rotates clockwise and moves from the belt pulley to the main shaft belt pulley through the belt. Three different rotating speeds can be obtained by the main shaft. The rotation of scraper (3) 5 is driven by the scraper motor through the belt pulley. Two different speeds can be obtained. The vertical position of the scraper can be adjusted through the butterfly nuts.

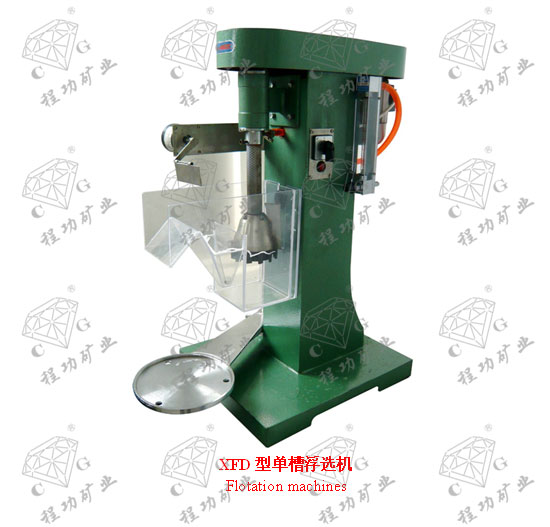

XFD型单槽浮选机 Flotation machines

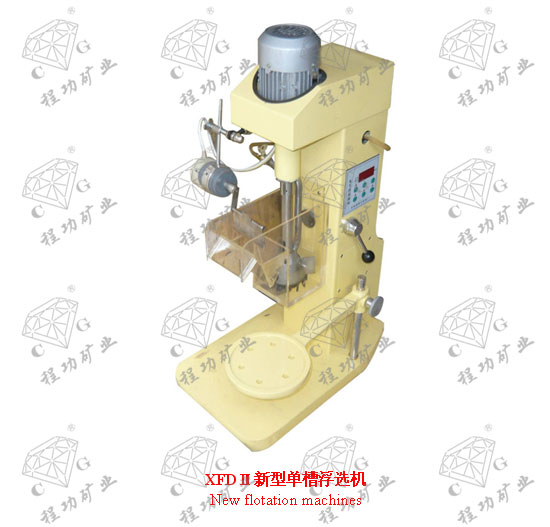

XFDⅡ新型单槽浮选机 New flotation machines

XFDⅡ新型单槽浮选机是XFD型单槽浮选机更新换代产品。它采用变频技术，叶轮无级调速，数字显示，调整精确，运转可靠。

New model Single Flotation Cell of XFDⅡis a updated product of XFD Model Single Flotation Cell, incorporating frequency conversion technology, stepless speed governing of impeller, digital display with accurate adjustment and reliable operation.

XFDⅡ型单槽浮选机由下列主要部件：

XFD II single-trough flotation machine is mainly composed of the following parts:

机体、主轴组件、刮板组件、料槽、玻璃转子流量计等组成。

Body, main shaft subassembly, scraper subassembly, trough, and glass rotameter

XFDⅡ型单槽浮选机控制部分：

Control parts of XFD II single-trough flotation machine:

由主轴变频无级调速控制、刮板速度控制等组成。

Control part of main shaft frequency conversion stepless speed regulation, control part of scraper speed, etc

XFDⅡ型单槽浮选机工作电源电压为AC 220V，为了人身安全，机体必需可靠接地，接电阻≤4Ω。

The working power and voltage of XFD II single-trough flotation machine is AC 220V. For human safety, the machine must be reliably grounded with an earth resistance ≤4Ω.

型号规格 Model	选槽 容积 Volume	叶轮直径 Impeller  Diameter	叶轮转速 Impeller speed	刮板转速 Scraper speed	给矿粒度 Feed size	功率 motor  power	质量 Weight
	L	mm	r/min	r/min	mm	w	kg
XFD0.5Ⅱ升	0.5	Φ45	0-2800	30、20	≤0.2	90	28
XFD0.75Ⅱ升	0.75	Φ45	0-2800	30、20	≤0.2	90	28
XFD1Ⅱ升	1	Φ55	0-2800	30、20	≤0.2	90	28
XFD1.5Ⅱ升	1.5	Φ60	0-2800	30、20	≤0.2	90	30
XFD2Ⅱ升	2	Φ65	1590-1910	15、30	≤0.2	90	32
XFD3Ⅱ升	3	Φ70	1200-2000	30、20	≤0.2	250	32
XFD5Ⅱ升	5	Φ73	1544-1890	7.9、19.1	≤0.2	250	58
XFD7Ⅱ升	7	Φ100	1400	8.6、12.9、 17.2	≤0.2	250	70
XFD8Ⅱ升	8	Φ100	1400	8.6、12.9、 17.2	≤0.2	250	72
XFD12Ⅱ升	12	Φ130	700-1100	26、20	≤0.2	370	80

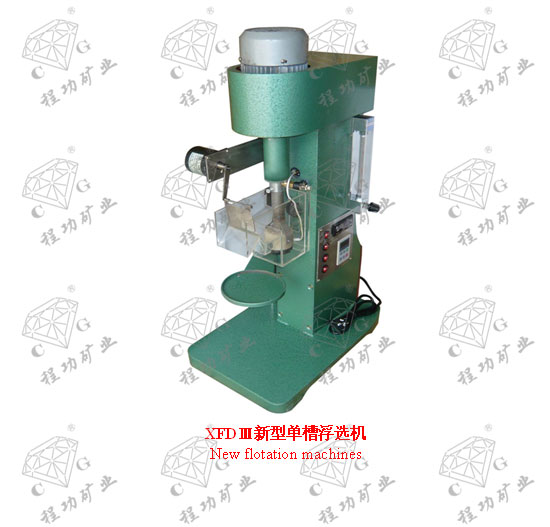

XFDⅢ新型单槽浮选机 New flotation machines

实验室用XFDⅢ型单槽浮选机供地质、冶金、建材、化工等矿山和科研机构实验室用于搅拌、擦洗、分离和精选少量矿样等。

Laboratory XFD III single-trough flotation machine is used by mines of geology, metallurgy, building material, chemicals, etc and laboratories of scientific institutes to agitate, scrub, separate and select a small quantity of ore samples.

XFDⅢ是XFD型更新换代产品。它采用变频技术，叶轮无级调速，数码显示，还将自吸气改为外充气，调整精确，显示清楚稳定。根据用户的需要可配装加热器、温度控制仪，随时控制、显示槽内矿液温度。本机可配液面自动调节补加水、自动给药等装置，可实现较高自动化水平。

New model Aeration Single Flotation Cell of XFD III is a updated product of XFD Model Single Flotation Cell, adopting external aeration device, adjustable aeration, frequency conversion technology, stepless speed governing of imp0eller digital display with accurate adjustment and reliable operation( When temperature for temperature control device ≤100℃ , it can be made in accordance with customer’s need).

该浮选机有机架部件、主轴传动部件、锁紧部件、刮板部件、浮选槽、外充气装置和电器控制等部件组成。

Such flotation machine is composed of frame part, main shaft drive part, lock part, scraper part, flotation cell, outside air inflation device, electric controller, etc.

气泵向槽内所供气体，在转子搅动下，与矿液混合均匀，被定子切割，生成微小矿化气泡。

The air supplied by the air pump into the cell mixes evenly with the slurry during the agitation of the rotor, is cut by the stator, and small mineralized bubbles are then produced.

转子的转速是无级调速的，可通过变频器来调整。

The rotating speed of rotor is stepless and variable which can be adjusted through frequency converter.

浮选槽的固定靠手轮带动螺杆压紧。

To fix the flotation cell, it must be pressed tightly with the hand wheel driving the screws.

刮泡机构，它的运动轨迹是一种圆周运动。

The motion trail of the scrapping mechanism is circular.
