试验室XFDM、XFD12型多槽选机技术参数 Technical

该浮选机用于地质、冶金、建材、化工、煤炭、矿山选厂及院校科研单位试验室搅拌、分离、擦洗、精选矿样等。本产品由原地矿部唯一指定企业生产，执行行业标准。

The flotation machines are employed for agitation , separation, scrubbing and cleaning of samples in labs of geological, metallurgical, building material, chemical, coal, beneficiation plant of mine , institutions of higher learning and research institutions. The product is produced by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

XFDM型多槽浮选机是选煤用实验型标准浮选机，也适用于冶金、地质、煤炭、建材、化工、环保等行业。用于搅拌、擦洗、分离和精选少量矿样等。

XFDM型多槽浮选机叶轮转速、充气量、刮板方式和次数均属可调，槽体容积可更换。定压补水槽补加清水，水位高度调节灵活方便，如果与数字式时间程序分配器配套使用，能显示和控制各浮选工序和时间，精确方便，可实现浮选试验操作部分自动化，因而试验精度较高，试验结果的重现性较好，是进行可浮性研究和试验较理想的设备。

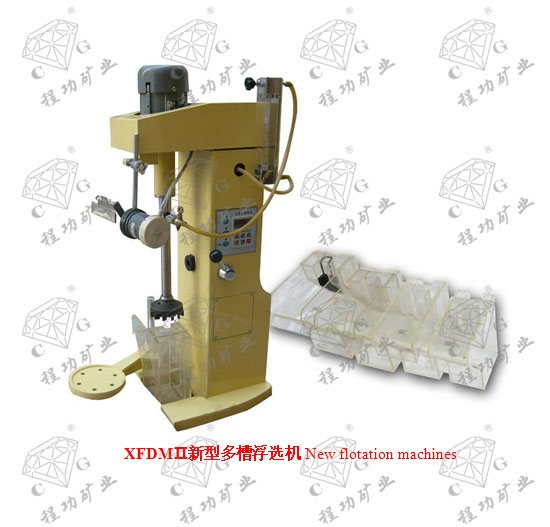

XFDMⅡ型多槽浮选机是XFDM型更新换代产品。它采用变频技术，叶轮无级调速，数码显示，调整精确。还装有加热器、温度控制仪，随时显示槽内矿液温度。本机还配有液面自动调节补加水等装置，可实现较高自动化水平。

XFDM Model Multi-cell Flotation Machine is an experimental standard flotation machine for coal dressing and is also suitable to applied in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for agitating, scrubbing, separating and cleaning minor samples.

XFDMⅡ Model Multi-cell Flotation Machine is a updated product of XFGC Model Multi-cell Flotation Machine, adopting frequency conversion technology, stepless speed governing of impeller and digital display with accurate adjustment and reliable operation. XFDMⅡ Model Multi-cell Flotation Machine uses the external aeration device with adjustment of aeration, accuracy and reliability.

型号规格 Model	选槽容积 Volume	叶轮直径 Impeller  diameter	叶轮转速 Impeller speed	给矿粒度 Feed size	刮板转速 Scraper speed	功率 power	质量 Weight
	L	mm	r/min	mm	r/min	w	kg
XFDM	0.75、1、 1.5、2.5	Φ45 Φ60	≤2800	≤0.5	30	180	33
XFDMⅡ	0.75、1、 1.5、2.5	Φ45 Φ60	≤2600	≤0.5	30、20	180	40

XFD12型多槽浮选机Multi-cell Flotation Machine

XFD12型多槽浮选机是丹佛式机型适用于冶金、地质、煤炭、建材、化工、环保等行业。用于搅拌、擦洗、分离和精选少量矿样等；可用来进行125 -3000克浮选试样的浮选试验。

XFD12 Model Multi-cell Flotation Machine is of Denver Type and suitable to be used in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for agitating, scrubbing, separating and cleaning minor samples.
