本机系于式强磁选机，适用于钛铁矿、稀土矿、铬铁矿、钨、锡矿、褐铁矿、铌、钽矿、锆英石、金红石、独居石、红柱石、石榴石、兰晶石、长石、石英等各种有磁性差异矿物的分选或非金属矿物除铁。
通过本机一次可分选出4种产品。

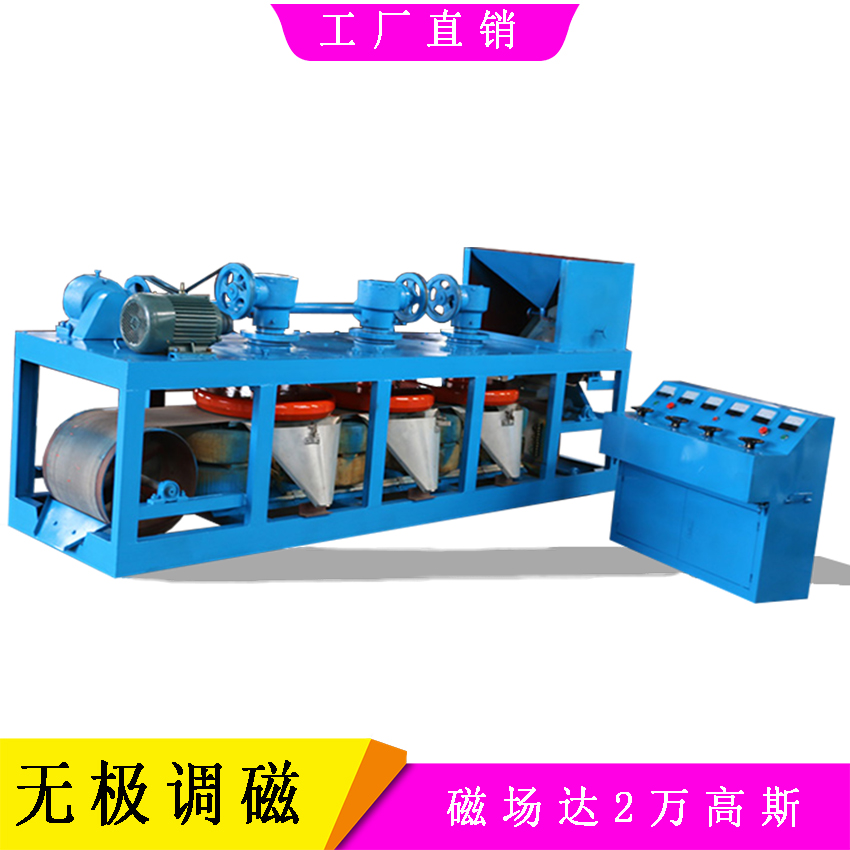

主机由给矿装置、弱磁滚筒、传动部分、物料输送装置、磁盘、电磁系统、机架等组成。电控部分由控制、调压、整流、仪表等元件组成。结构紧凑，性能稳定，安装简易，使用维护方便。
The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
4 varieties of products can be obtained by separation of the device.
Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.
| 型号规格 | 单位 | 3PC-500 | 3PC-600 | 3PCX600 |
| 磁场强度 | 毫特 | 距带面2㎜ 盘齿1700 |
距带面2㎜ 盘齿1800 |
距带面2㎜ 盘齿2000 |
| 磁盘数量 | 个 | 3 | 3 | 3 |
| 磁盘直径 | mm | 500 | 600 | 600 |
| 磁盘转速 | r/min | 25～40 | 22-38 | 22-32 |
| 电源 | V | 380 | 380 | 380 |
| 激磁线圈 | 组 | 4 | 4 | 4 |
| 配用电机 | kw | 0.75 | 1.5 | 1.5 |
| 激磁功率 | kw | 1.5 | 1.6 | 1.6 |
| 线圈温升 | ℃ | 65 | 65 | 65 |
| 线圈额定电流 | A | 1.1～1.8 | 1.2-1.9 | 1.2-2.2 |
| 使用定额 | 连续 | 连续 | 连续 | |
| 供料宽度 | mm | 210 | 300 | 300 |
| 原料粒度 | mm | ≤2 | ≤2 | ≤2 |
| 处理量 | kg/h | 100～500 | 120-800 | 80-800 |
| 外形尺寸 | mm | 2800×800×1220 | 3200×870×1160 | 3150×900×1250 |
| 质量 | kg | 1900 | 2200 | 2300 |
| Model & Specification | Uite | 3PC-500 | 3PC-600 | 3PCX600 |
| Magnetic intensity | Hauteur | Distance to belt surface 2㎜ Disk teeth 1700 |
Distance to belt Surface 2㎜ Disk teeth 1800 |
Distance to belt 2㎜ Disk teeth 2000 |
| Number of magnetic disk | Piece | 3 | 3 | 3 |
| Diameter of magnetic disk |
mm | 500 | 600 | 600 |
| Revolution of magnetic disk | r/min | 25～40 | 22-38 | 22-32 |
| Power supply | V | 380 | 380 | 380 |
| Exciting coil | Unit | 4 | 4 | 4 |
| Matching motor | kw | 0.75 | 1.5 | 1.5 |
| Exciting power | kw | 1.5 | 1.6 | 1.6 |
| Coil temperature rise | ℃ | 65 | 65 | 65 |
| Rated current of coil |
A | 1.1～1.8 | 1.2-1.9 | 1.2-2.2 |
| Duty rating | Continuous | Continuous | Continuous | |
| Feed width | mm | 210 | 300 | 300 |
| Feed size | mm | ≤2 | ≤2 | ≤2 |
| Processing capacity | kg/h | 100～500 | 120-800 | 80-800 |
| Outside dimension | mm | 2800×800×1220 | 3200×870 ×1160 |
3150×900 ×1250 |
| Mass | kg | 1900 | 2200 | 2300 |
