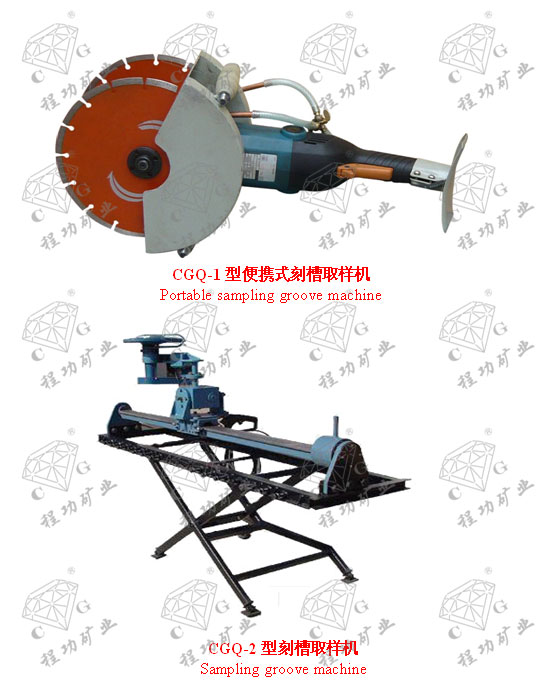

CGQ-1、CGQ-2型便携式刻槽取样机技术参数

广泛适用于地质勘探、矿山井下坑道等固体矿床的勘查取样，其特点是多角度多方位高效率采样、劳动强度低、粉尘少，采样质量好、成本低，本装置机构灵巧，解体性能好，便于拆装和运输。

It is widely applied for sampling in geological exploration and prospecting of underground tunnels of mine and solid deposits and features sampling with high efficiency in multi-angle and multi-orientation, low labor intensity, less dust, high quality sampling and low cost . It is dexterous in mechanism, desirable in disintegration performance and easy to be disassembled and transported.

本机适应于地质矿井的坑道取样作业。其主要特点:1、双锯片配制，保证样槽规格；2、进口微型电镐，特制钎头，凿取效率高；3、背带、托板设计，操作十分轻便；4、体积小、重量轻，携带方便、操作灵活，能够有效的在规定的位置把矿样方便取出，在操作过程中不易产生矿样污染及混杂现象。

This equipment is applicable to adit sampling operation in mine. Its main features: 1. Double-blade configuration ensures the specification of sampling; 2. Imported micro electric pick with special drill head for high chiseling efficiency; 3. Strap and support plate for easy operation; 4. Small in size, light in weight, easy to carry, flexible operation; the ore sample can be conveniently taken out from specified position effectively; ore sample contamination and mixing is not easy to occur during operation.

CGQ-1型便携式刻槽取样机技术参数 Portable sampling groove machine
型号规格 Model	单位 Uite	CGQ-1
切割槽****深度 Cutting length	mm	70
切割槽宽度 Cutting width	mm	100
电源电压 Voltage	V	220
电源频率 Frequency	Hz	50
额定功率 Power	W	1800
切割锯片尺寸 Cutting size	mm	Φ230×25.4×2.8
空载转速 Speed	r/min	5000
重量 Weight	Kg	8
