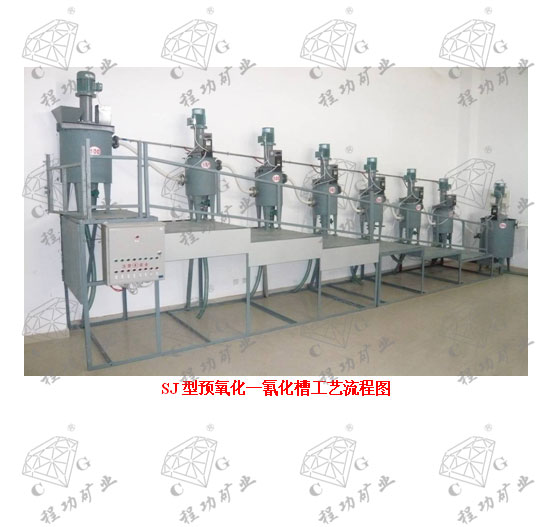

实验室SJ型预氧化—氰化槽技术参数

一、用途

I. Purpose

实验室SJ型氰化槽可供地质、冶金、建材、化工等科研机构实验室用于湿法浸出搅拌等。

Cyanidation vat model SJ for laboratory is designed for wet-type agitation leach for laboratories of scientific institutions of geology, metallurgy, building materials and chemical industries.

氰化槽采用外充气，模拟现场更为实际。采用变频技术，叶轮无级调速，数码显示，调整精确。还装用数字温控仪实时监控矿液温度处于设定值。

This externally inflated cyanidation vat can simulate the site more practically and features frequency conversion technology, stepless speed regulation of impeller, digital display and accurate adjustment. This vat is also provided wit digital temperature controller for real-time monitoring of ore fluid temperature so as to keep this temperature at the set value.

氰化槽增加了外充气功能。取下循环桶，安装上叶轮即是浸吸槽。

Cyanidation vat has a external inflation function. This vat can be changed to an imbibition tank after the circulation barrel is removed and the impeller is mounted.

液晶显示温控仪监控矿浆温度始终处于设定值。

LCD temperature controller ensures that the slurry temperature will always be kept at the set value.

二、技术参数

Ⅱ. Technical Parameters

型号规格 Model		SJ -50L	SJ -100L	SJ -200L
槽体容积 Tank Volume	L	50	100	200
叶轮直径 Impeller dia.	mm	Ф120	Ф150	Ф180
叶轮转速 Speed	r/min	0-2000	0-2000	0-2000
给矿粒度Feed size	mm	0.05-0.2	0.05-0.2	0.05-0.2
充气量 Aeration		可调	可调	可调
槽体尺寸 Tank size	mm	Ф368×510	Ф488×600	Ф588×800
功率 Power	kw	0.75	1.1	1.5
质量Weight	kg	75	90	120
