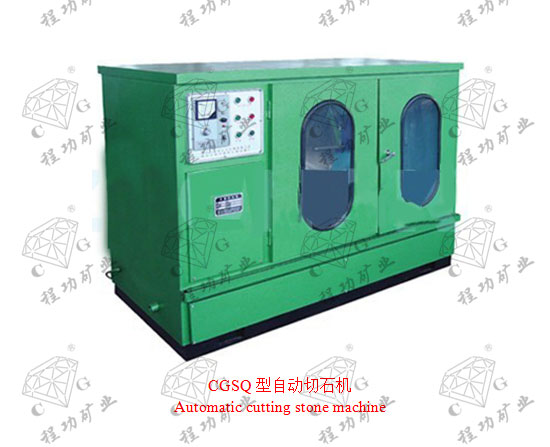

CGSQ型自动切石机用途:
Purpose of Automatic Stone Cutting Machine Model CGSQ:
全密封、低噪音,自动切割且切割速度可调 ,可快进快退,自动后退.采用大直径450-800mm 金刚石刀片,可同时切割两平行的平面,两平面距离可调.
Full enclosed, low noise, automatic cutting at variable speed; fast forward and backward movement available; 450-800mm large diameter diamond blade for synchronous cutting of planes in parallel; the distance between the two planes is adjustable.
CGSQ型自动切石机特点:
Features of Automatic Stone Cutting Machine Model CGSQ:
全密封、低噪音,自动切割且切割速度可调,可快进快退,自动后退.采用大直径450-800mm金刚石刀片,可同时切割两平行的平面,两平面距离可调.
Full enclosed, low noise, automatic cutting at variable speed; fast forward and backward movement available; 450-800mm large diameter diamond blade for synchronous cutting of planes in parallel; the distance between the two planes is adjustable.
型号规格 | SCQ-1A型 | SCQ-4A型 | SCQ-5A型 | |
---|---|---|---|---|
****可切高度 | mm | ¢170 170mm | ¢210 210mm | ¢300 300mm |
金刚石切刀 | mm | ¢485×¢55×3.5 | ¢585×¢55×3.6 | ¢800×¢55×5 |
工作形式 | 单、双刀切割两平面 | 单、双刀切割两平面 | 单刀切割 | |
主电机 | Y112M-4KW | Y112M-4KW | ||
切刀线速度 | m/s | 33-55 | ||
工进速度 | 电控调速 | |||
噪音 | dB | ≤80 | ||
外形尺寸 | mm | 1650×880×1200 | ||
质量 | kg | 750 |
