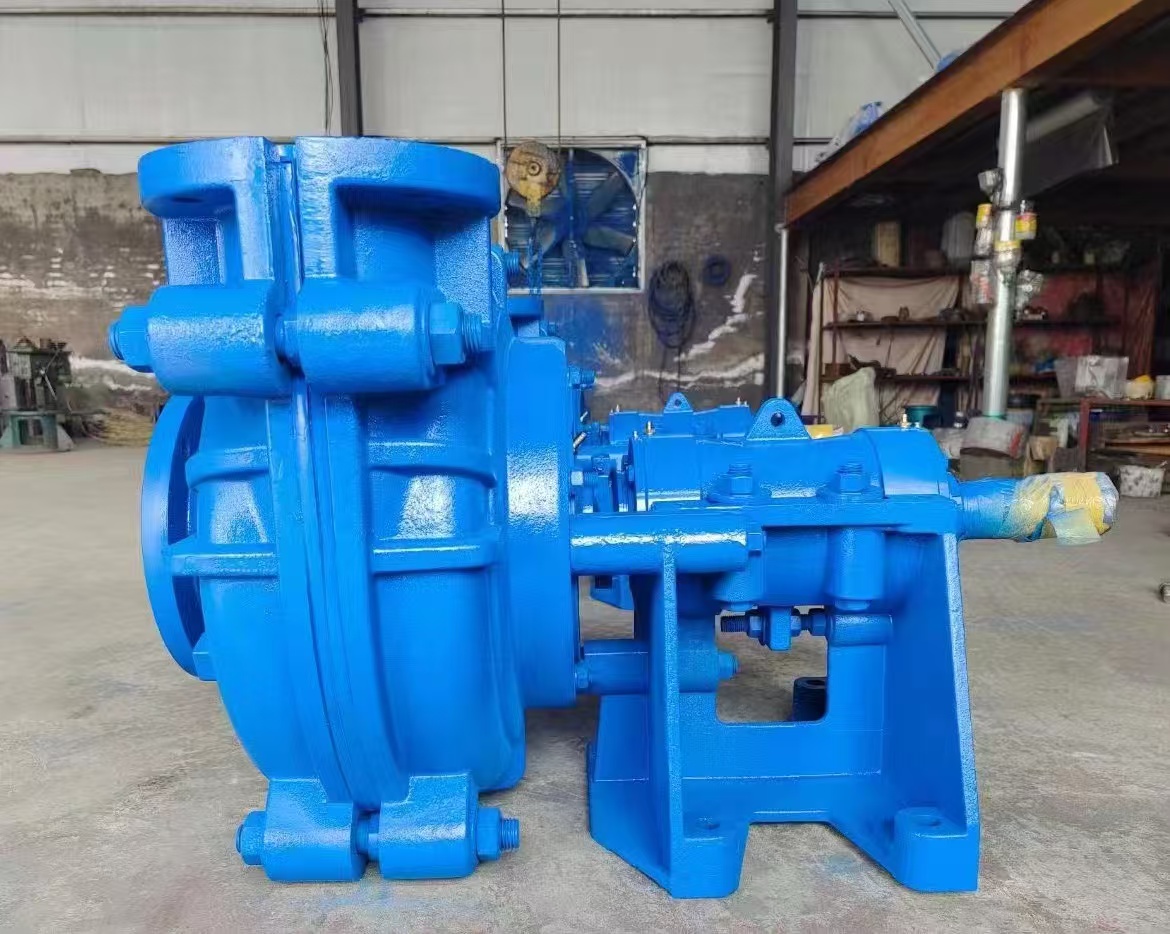

PS型砂泵是单级单吸离心泵,其主要特点是:流道宽敞,能通过较大的砾石,并能在较大的范围内变化流量。故能广泛应用于有色冶金、矿山采选和煤炭、电力、河坝清基等工程输送矿浆、泥砂、灰渣等物料。投资少、见效快、效率高、经济效益好。
As a single stage single suction volute pump, the sand pump model PS features wide flow passage for fair-sized gravels and the flow regulation within a relatively large range. . Hence, this pump can be widely used to convey the materials like ore pulp, silt and slag etc. in metallurgy of non-ferrous metal, mining and concentration, coal, electric power and river dam foundation preparation projects etc. . This machine also features low cost, high effectiveness, high efficiency and good economic returns.
型号规格 Model | 流 量 Flow rate | 扬程 Head | 允许通过****石块 Allows for maximum rock | 出矿口尺寸 Size of the mine mouth | 功率 Power | 外形尺寸 Overall dimension | 重量 Weight |
m³/h | m | mm | mm | kw | mm | kg | |
1PS | 8.65 | 15 | 3 | 25 | 3 | 830×328×730 | 97 |
11/2PS | 15.6 | 23 | 4 | 38 | 5.5 | 1033×498×713 | 205 |
2PS | 25 | 24 | 10 | 50 | 7.5 | 1140×500×1000 | 280 |
21/2PS | 43 | 27 | 12 | 63 | 7.5 | 1300×490×1010 | 338 |
4PS | 80-140 | 10-30 | 38 | 100 | 11-30 | 1645×1095×1074 | 450 |
5PS | 230-300 | 29-36 | 40 | 125 | 37-55 | 1452×650×460 | 670 |
6PS | 240-380 | 25-45 | 75 | 150 | 75-115 | 2055×1140×1500 | 2300 |
8PS | 300-600 | 25-55 | 100 | 200 | 95-185 | 2312×1344×1785 | 3824 |
