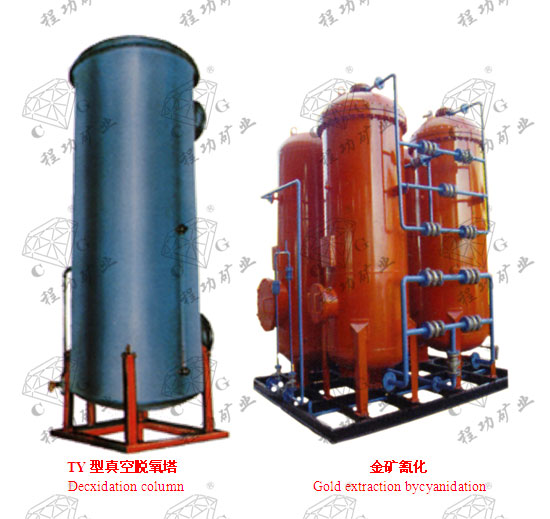

·TY型真空脱氧塔技术参数Parameter of the decxidatio

TY型真空脱氧塔技术参数 Parameter of decxidation column

脱氧塔按填料不同主要分为三种，即木格填料、点波填料、新型塑料网状填料。新型塑料网状填料是我公司新研制的一种新产品，解决了点波填料因碱性氰化液结钙堵孔影响脱氧效果的弊病。

The deoxidizing column is classified into three types according to their filling materials, i.e., wooden grate filling, diamond-waved filling, and new plastic mesh filing. The new plastic net filling is a new product developed by xinhai, which overcomes the blockage problem caused by scaling of the alkaline cyanide when using “point wave” lining.

该设备是一种主要用于氰化提金工艺中锌粉置换提取金银前脱除含在贵溶解氧的理想设备。

This machine is ideal for removing the  dissolved oxygen inside pregnant solution before the extraction of gold and silver  through zinc powder substitution in cyanidation extraction process.

该设备结构简单，该塔内有液位自动调节机构，操作方便，使用可靠，可使贵液中含氧量降到0.5克/米3以下，脱氧率可达95%以上。

This equipment has a simple structure. The  automatic level-regulation mechanism inside the tower is easy to operate and reliable  to use. With this mechanism, the oxygen content in pregnant solution can be  reduced below 0.5 g/m3.  The deoxygenation rate may reach up to 95%.

工作原理：

Working principle:.

贵液由真空作用从塔内的顶部吸入，由喷淋器淋洒到填料层上，在真空作用下，液体内溶解的气体被脱除，从而达到脱氧的目的。

The pregnant solution  is sucked in from the top side of tower under the effect of vacuum and is  sprayed to packing layer by a sprinkler. Under the effect of vacuum, the  dissolved gases in the liquid are removed to realize deoxidation.
